Name: AL-KO Jockey Wheel with Foot Brake
Brand: AL-KO
SKU: 84351
Price: 75.41 EUR
Availability: InStock

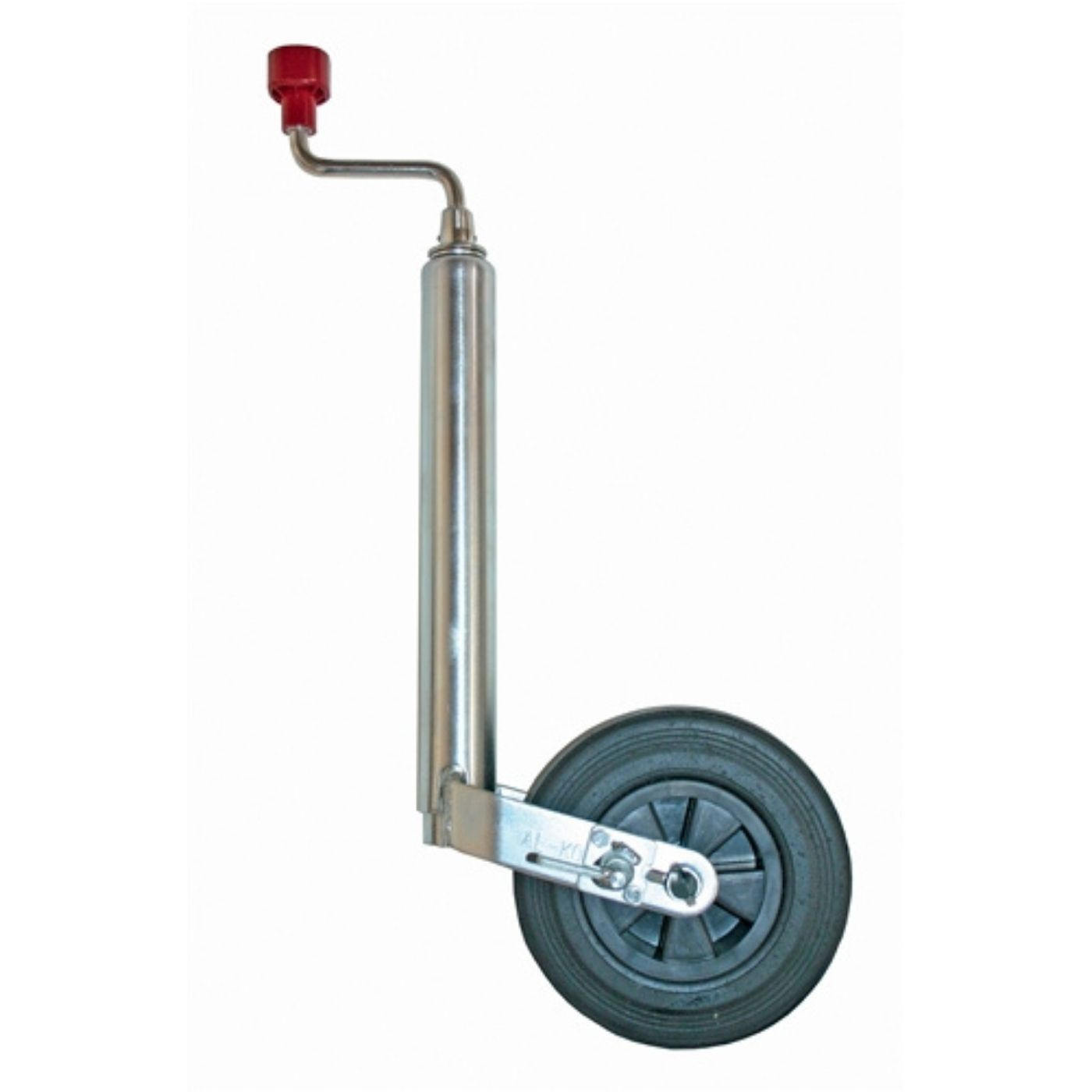

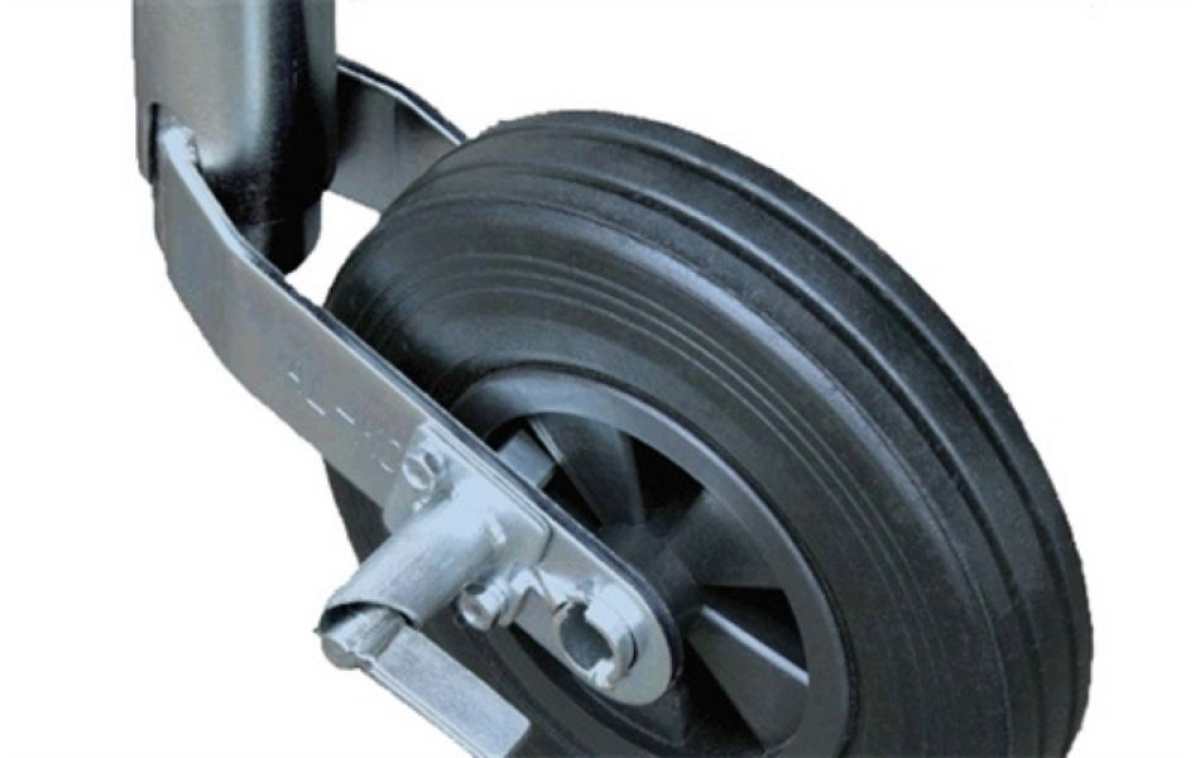

Make handling your caravan easier with this robust and practical AL-KO jockey wheel. The manual design makes it convenient to raise and lower the drawbar when hitching or unhitching, while the foot brake helps keep the wheel stationary when needed. The brake acts directly on the rim rather than the tyre tread, providing a practical braking solution.

The jockey wheel is galvanised for corrosion protection and features a durable construction suitable for regular use at campsites and when parking your caravan. The plain-bearing wheel rolls smoothly and measures 200 x 50 mm. With a maximum static load of 150 kg, it provides stable support when handling the caravan drawbar.

Benefits

Foot brake acting on the rim
Galvanised corrosion protection
Plain-bearing wheel for smooth operation
Robust construction for caravans
Manual height adjustment
Supports up to 150 kg static load

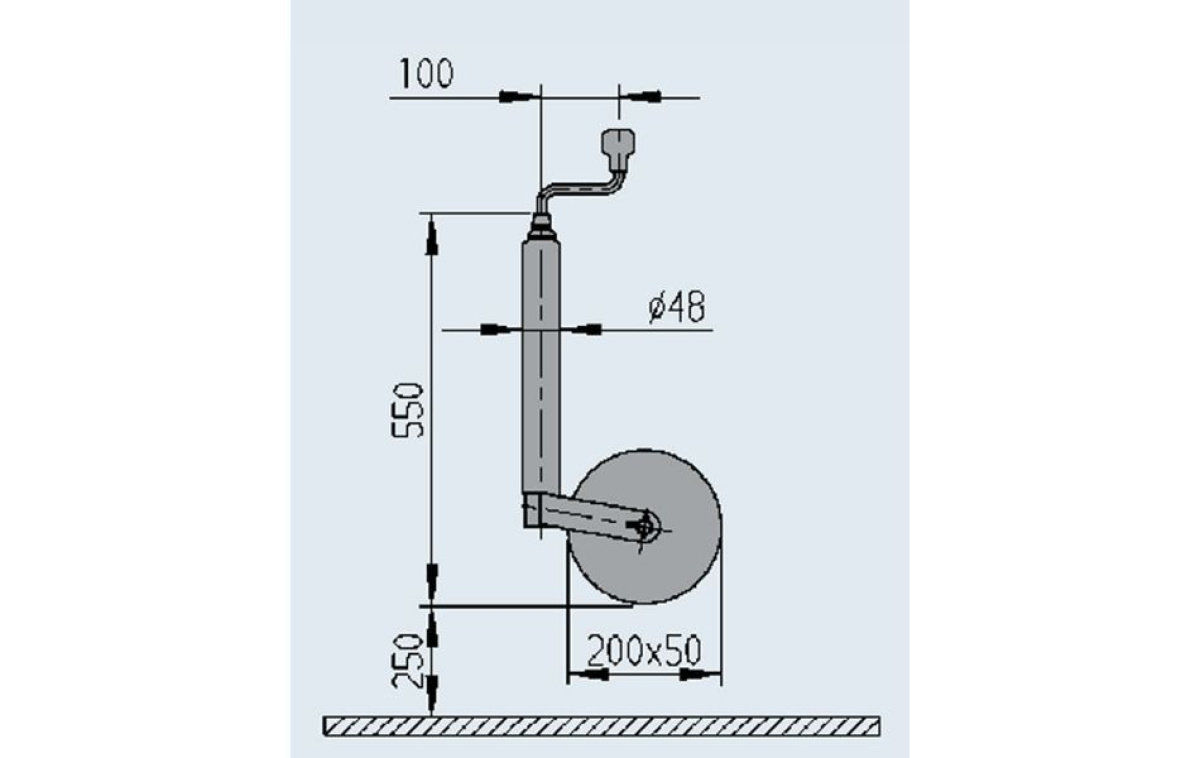

Technical data
Brand: AL-KO
Type: Manual jockey wheel with foot brake
Article number: 1222436
Wheel dimensions: 200 x 50 mm
Rim material: Steel
Surface treatment: Galvanised
Bearing: Plain bearing
Maximum static load: 150 kg
Maximum load during manoeuvring: 90 kg
Crank length: 250 mm
Weight: 5.0 kg
Tube diameter: 48 mm
