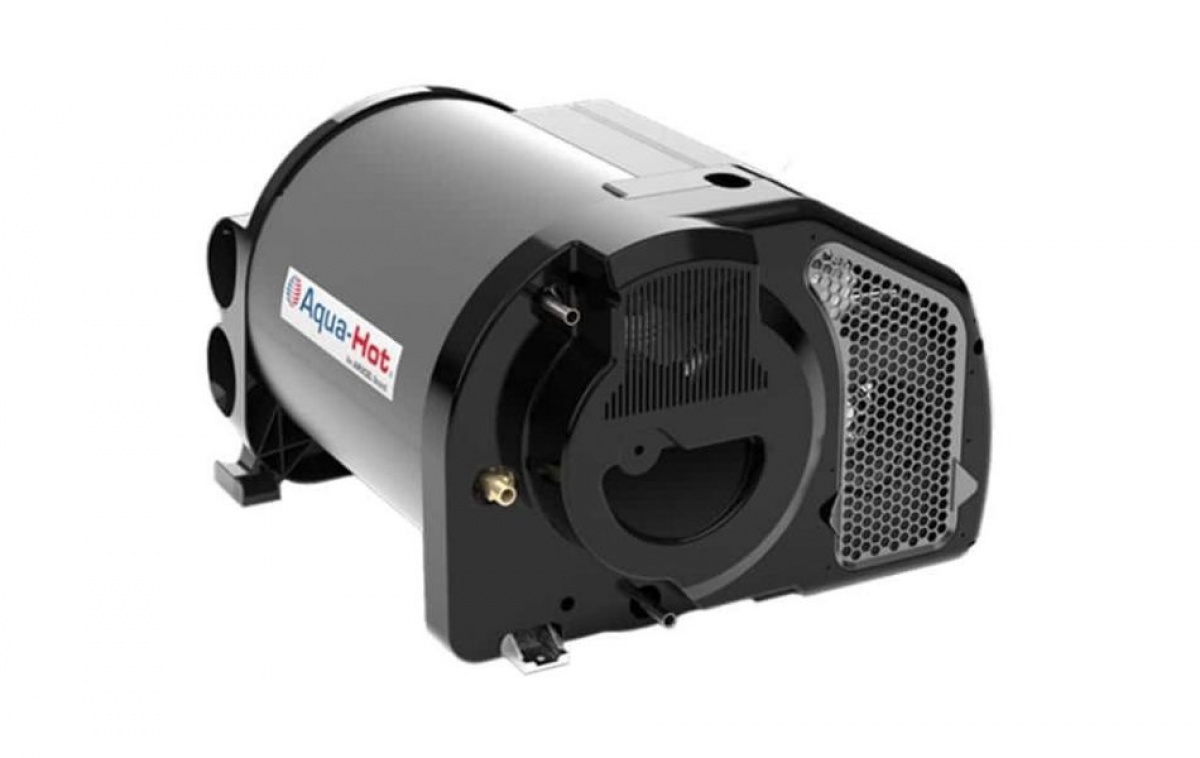

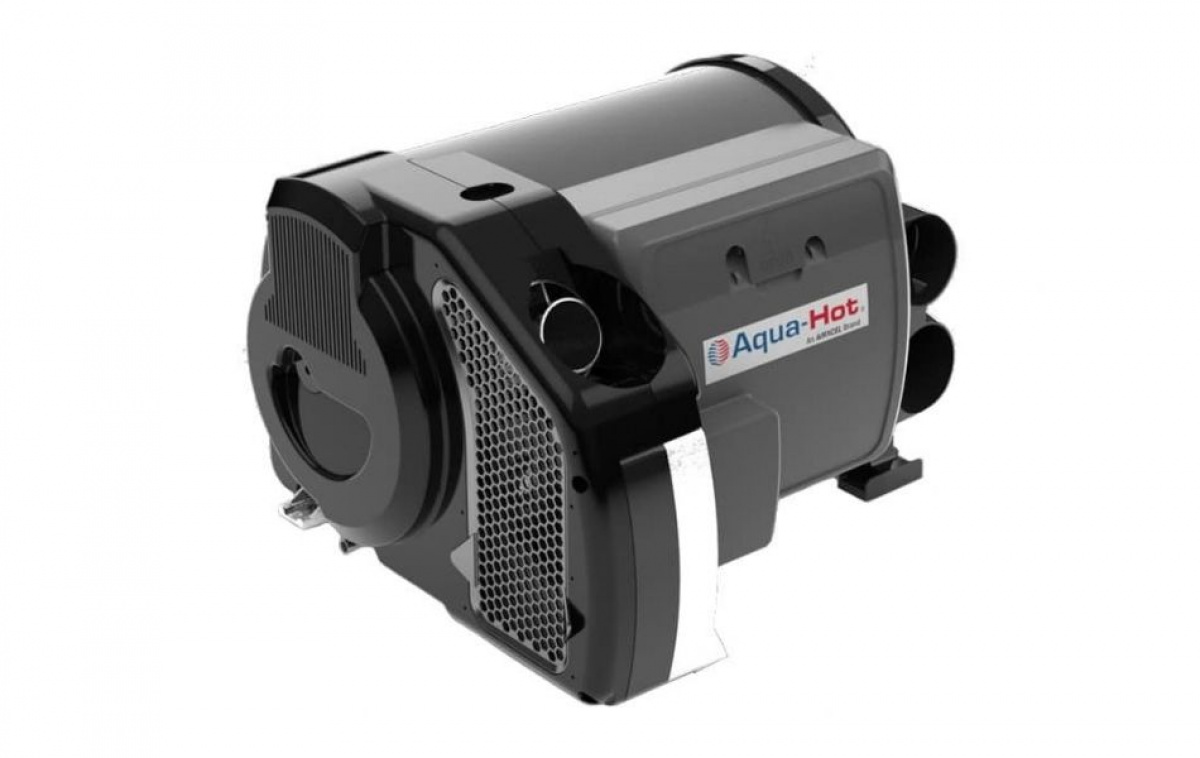

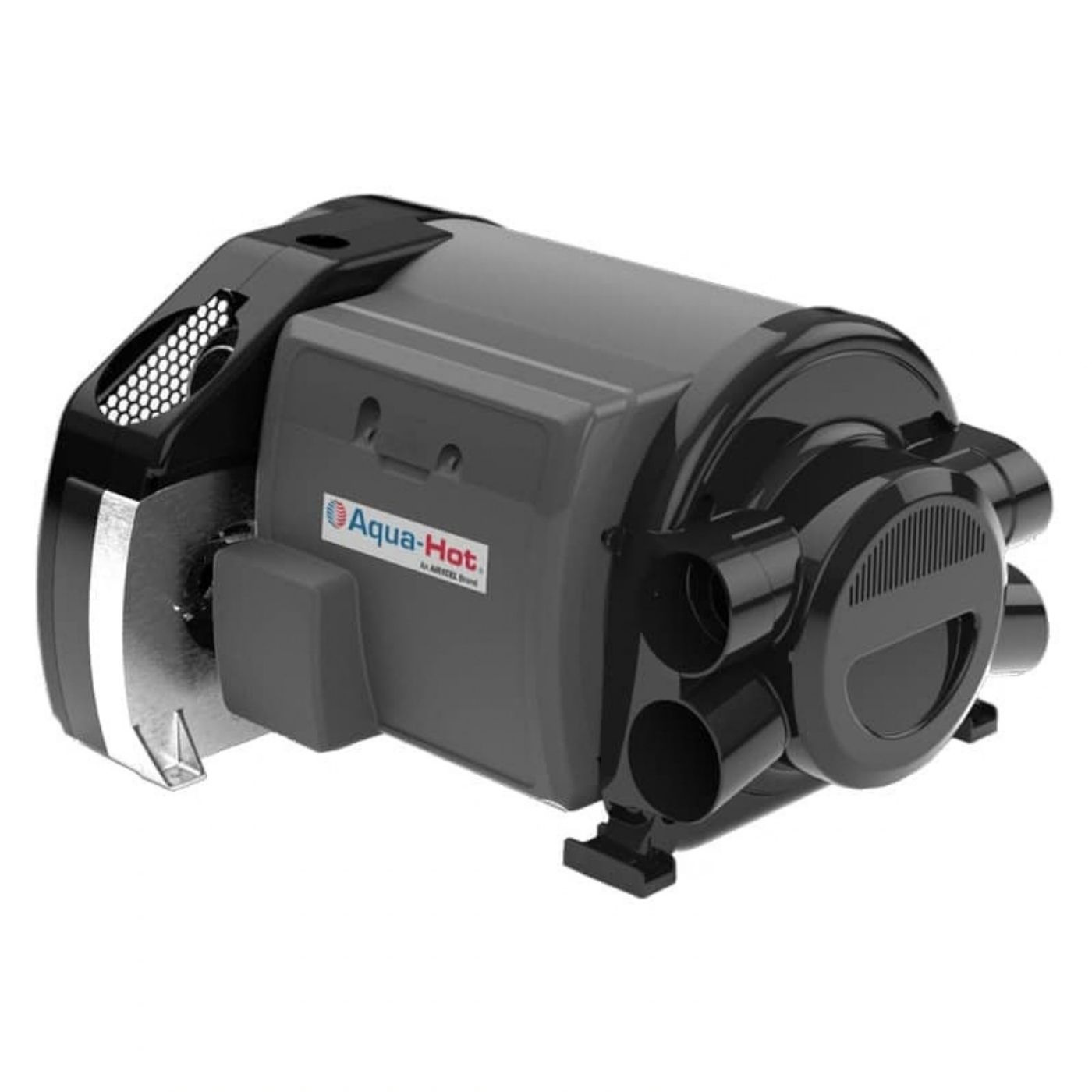

This compact heater combines forced-air heating and an integrated 10-litre water heater in a single unit. The system is designed for RVs and runs on propane or butane while also offering 230 V electric operation. The water can be heated independently of the furnace, providing hot water even when cabin heating is not required.

In Gas Mode, the heater automatically adjusts its output according to the temperature and heating demand. In Electric Mode, either 900 W or 1800 W can be selected according to the available shore power capacity. In Hybrid Mode, electric heating is prioritised when the heating demand is low, while the gas burner automatically activates when more heating power is required. This allows gas consumption to be reduced when the vehicle is connected to 230 V shore power.

The system features a 10-litre water tank and allows hot water temperatures of 40-60 °C. The water pump has a maximum pressure of 2.8 bar, while the system pressure is rated up to 4.5 bar. With a maximum warm air flow rate of 287 m³/h, the heater provides effective heating for the motorhome interior.

The heater is RV-C Ready and, according to the stated product information, is fully compatible with and interchangeable with existing Truma Combi systems without vehicle modifications. An installation accessory kit is included.

Advantages

Combined forced-air heater and 10-litre water heater
Runs on propane or butane and 230 V electricity
Gas, electric and hybrid modes
Gas heating with three output levels, 2000, 4000 and 6000 W
Electric heating at 900 W or 1800 W
Helps reduce gas consumption when connected to 230 V shore power
Water can be heated independently of the furnace
Hot water temperature settings from 40-60 °C
RV-C Ready
Compatible with and interchangeable with Truma Combi systems without vehicle modifications
Installation accessories included

Technical data
Fuel: Gas, propane/butane
Power supply: 12 V DC / 230 V AC
Gas pressure: 30 mbar
Gas heat output: 2000 / 4000 / 6000 W
Electric heat output: 900 / 1800 W
Efficiency: 98 %
Gas consumption: 160-480 g/h
Water tank: 10 l
Current draw 12 V: max. 5.6 A for short periods, average 1.3 A
Current draw 230 V: 3.9-7.8 A
Maximum warm air flow: 287 m³/h
Maximum water pump pressure: 2.8 bar
Maximum system pressure: 4.5 bar
Hot water temperature: 40-60 °C
Dimensions (L x W x H): 510 x 450 x 300 mm
Weight: 15.6 kg
