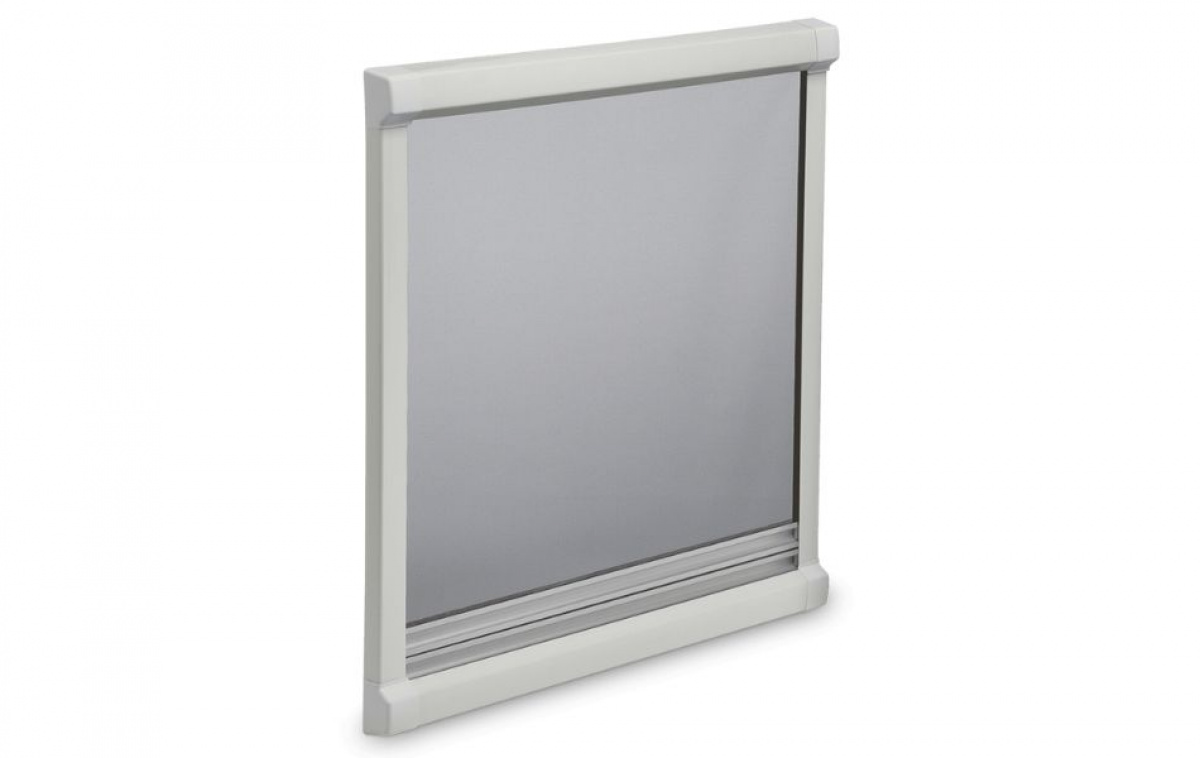

Dometic Roller Blind DB1R

This new roller blind system is designed to fit perfectly into modern vehicle interiors. With its attractive design and smart features, it offers both style and comfort for motorhomes, caravans, and boats.

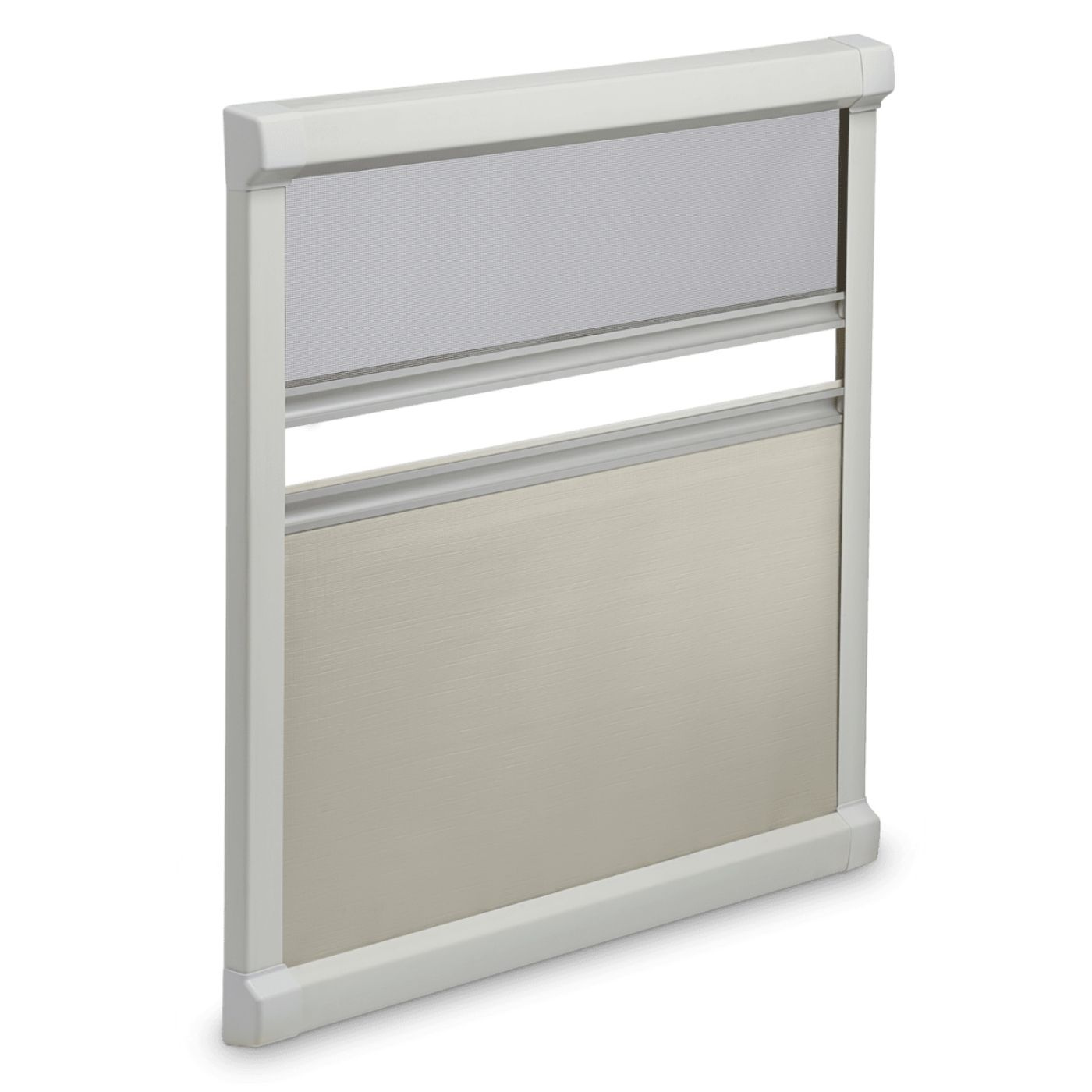

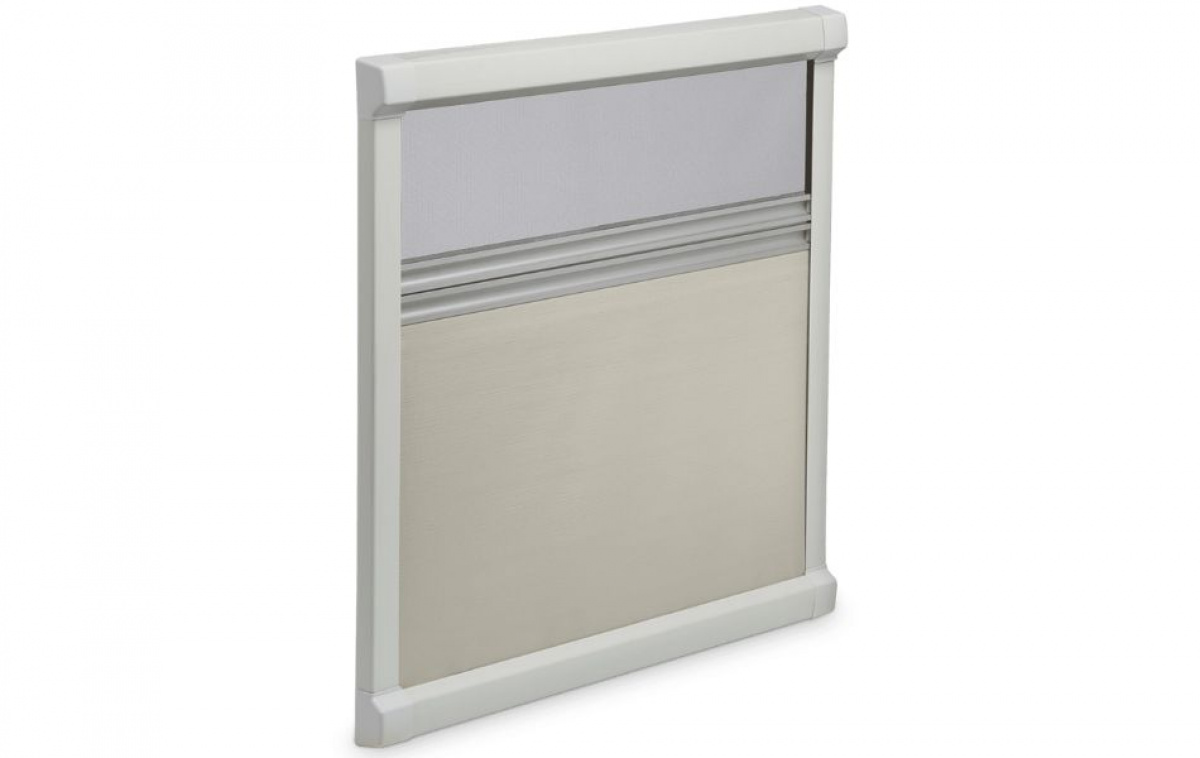

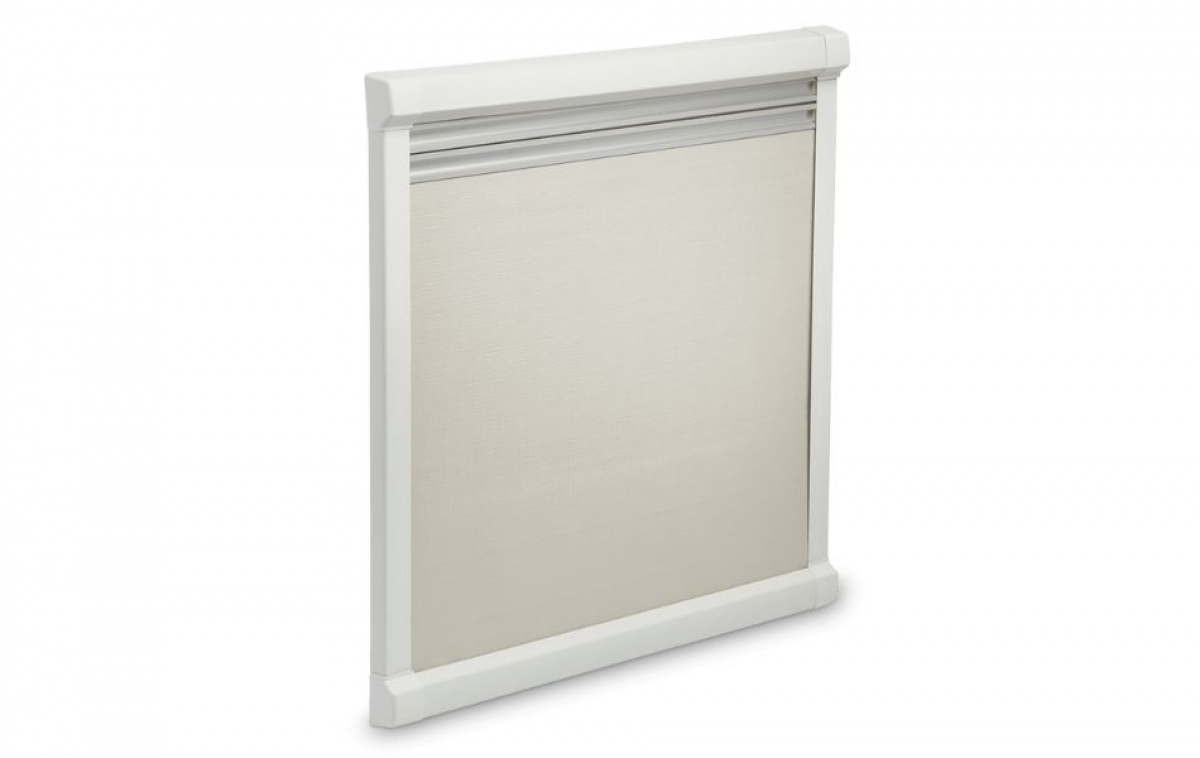

The system comes pre-assembled for easy adaptation to most leisure vehicle windows. The blackout blind and insect screen can be adjusted separately and to exact positions, providing maximum flexibility. The insect screen can also be fixed both at the top and bottom, depending on need.

Slim profiles provide a wide field of view and an airy feel, while no visible screws disturb the modern design. Installation takes place completely without tools for securing the roller blind and insect screen.

A solution that combines function, design, and convenience in the best way.

Technical data
Width A
Width C
Width E
Height B
Height D
Height F

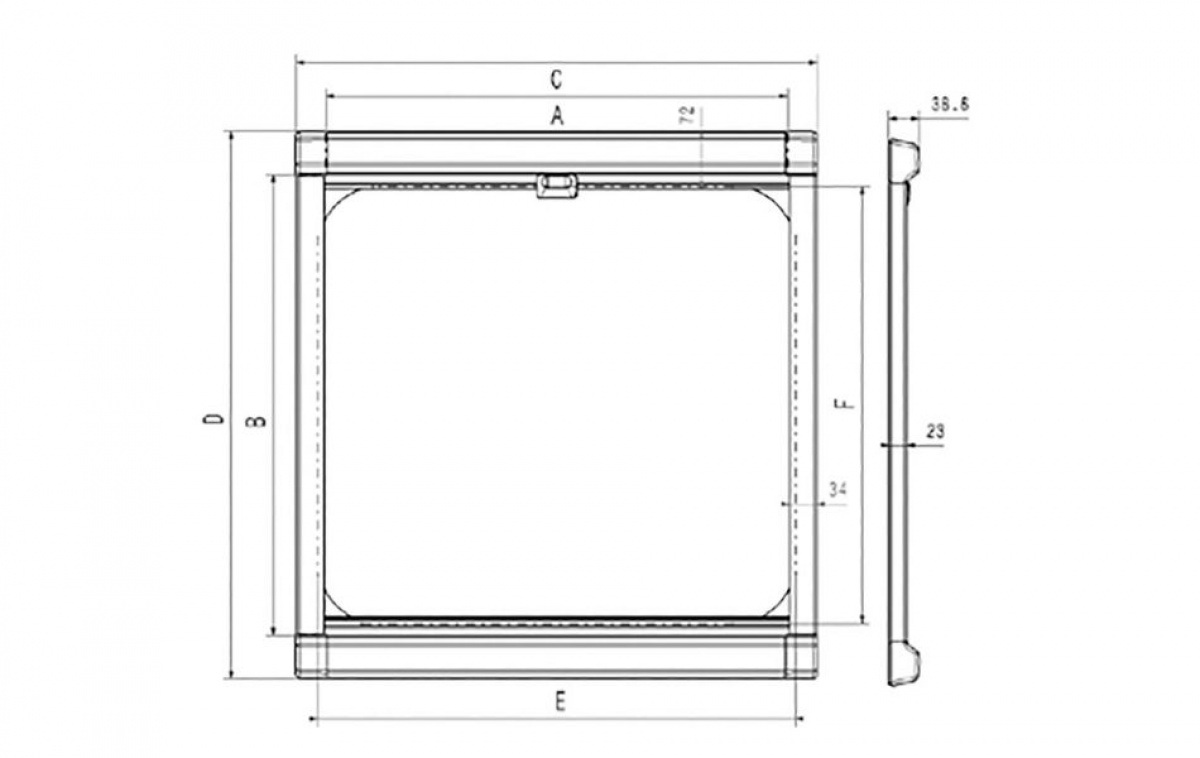

See image for dimensions.
Measurements in mm.

Size
480X330
480(A) 554(C) 500(E) 330(B) 436(D) 300(F)
480X530
480(A) 554(C) 500(E) 530(B) 636(D) 500(F)
580X530
580(A) 654(C) 600(E) 530(B) 636(D) 500(F)
580X630
580(A) 654(C) 600(E) 630(B) 736(D) 600(F)
680X430
680(A) 754(C) 700(E) 430(B) 536(D) 400(F)
680X530
680(A) 754(C) 700(E) 530(B) 636(D) 500(F)
680X630
680(A) 754(C) 700(E) 630(B) 736(D) 600(F)
780X530
780(A) 854(C) 800(E) 530(B) 636(D) 500(F)
780X630
780(A) 854(C) 800(E) 630(B) 736(D) 600(F)
880X330
880(A) 954(C) 900(E) 330(B) 436(D) 300(F)
880X530
880(A) 954(C) 900(E) 530(B) 636(D) 500(F)
880X630
880(A) 954(C) 950(E) 630(B) 736(D) 600(F)
980X530
980(A) 1054(C) 1000(E) 530(B) 636(D) 500(F)
980X630
980(A) 1054(C) 1000(E) 630(B) 736(D) 600(F)
1080X530
1080(A) 1154(C) 1100(E) 530(B) 636(D) 500(F)
1080X630
1080(A) 1154(C) 1100(E) 630(B) 736(D) 600(F)
1180X330
1180(A) 1254(C) 1200(E) 330(B) 436(D) 300(F)
1180X530
1180(A) 1254(C) 1200(E) 530(B) 636(D) 500(F)
1180X630
1180(A) 1254(C) 1200(E) 630(B) 736(D) 600(F)
1280X530
1280(A) 1354(C) 1300(E) 530(B) 636(D) 500(F)
1280X630
1280(A) 1354(C) 1300(E) 630(B) 736(D) 600(F)
1580X630
1580(A) 1654(C) 1600(E) 630(B) 736(D) 600(F)
410X480
410(A) 484(C) 430(E) 480(B) 586(D) 450(F)
470X480
470(A) 544(C) 490(E) 480(B) 586(D) 450(F)
510X580
510(A) 584(C) 530(E) 580(B) 686(D) 550(F)
