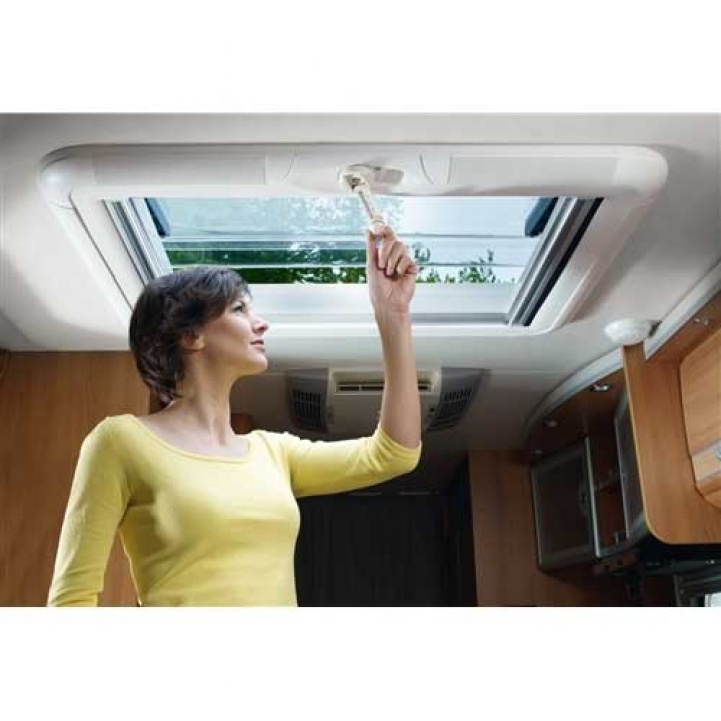

Dometic Roof Hatch Heki 3

Heki 3 features an advanced Duette® system that offers excellent insulation. The frame is made of weather-resistant Luran-S, designed to prevent light leakage between the Duette® blind and the frame. The grey-tinted acrylic window can be opened for ventilation with a maximum opening angle of 70 degrees when the vehicle is stationary. A 40 mm opening position can be used in the rain. The window prevents water from entering even when it is open. The Duette® blind can be adjusted infinitely. The connected insect screen follows the blind. The integrated energy-efficient lighting is 2 x 8W and provides a pleasantly subdued ambient light.

Colour: cream white RAL9001. Simple and safe operation with a crank. Sturdy lock.
Requires installation space of 1075 x 760 mm with hole dimensions: 960 x 655 mm.
For roof thicknesses of 27-60 mm. The hatch's clear passage dimensions: 790 x 510 mm.
Weight: 15 kg.
Corner radius: 4 x 50 mm.
Heki 3 can be installed transversely or longitudinally. In the closed position, the hatch is unventilated.

NOTE! For thicker roofs, the following accessories are available: Installation kit for various roof thicknesses. Cover strip for inner/outer frame (for roof thickness of 45-60 mm). See related products below.
