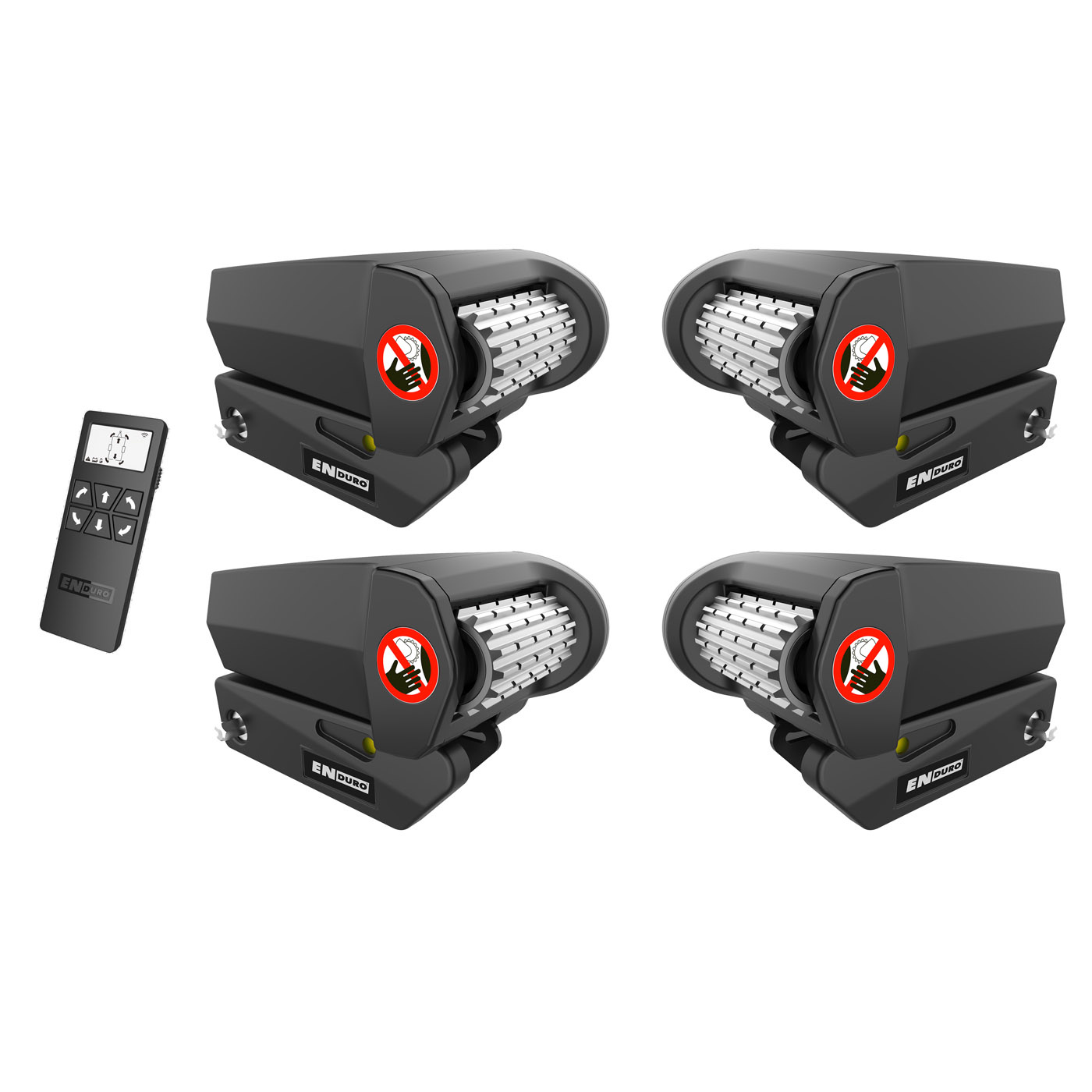

The compact design allows the system to be mounted on most chassis (L- or U-profile). Thanks to the robust construction and powerful motors, the EM313 4WD can move caravans up to 2500 kg on inclines of up to 18%.
Advantages:
- Reliable operation even under heavy load
- Can drive up slopes with an 18% incline (at 2500 kg total weight)
- Remote control included for smooth maneuvering
- Indicator shows correct pressure against the wheel
- Universal mounting system
- Compatible with most caravans on the market
Technical specifications:
- Mounting brackets: Steel, universal
- Drive wheels: 70 mm
- Engage/disengage drive rollers: Manual via crank
- Speed: Up to 12 cm/sec
- Average current consumption: 40 A
- Maximum current consumption: 200 A
- Recommended battery: 12 V, 105 Ah (minimum 80 Ah)
Note:
The Enduro app does not work when four motors are installed.
