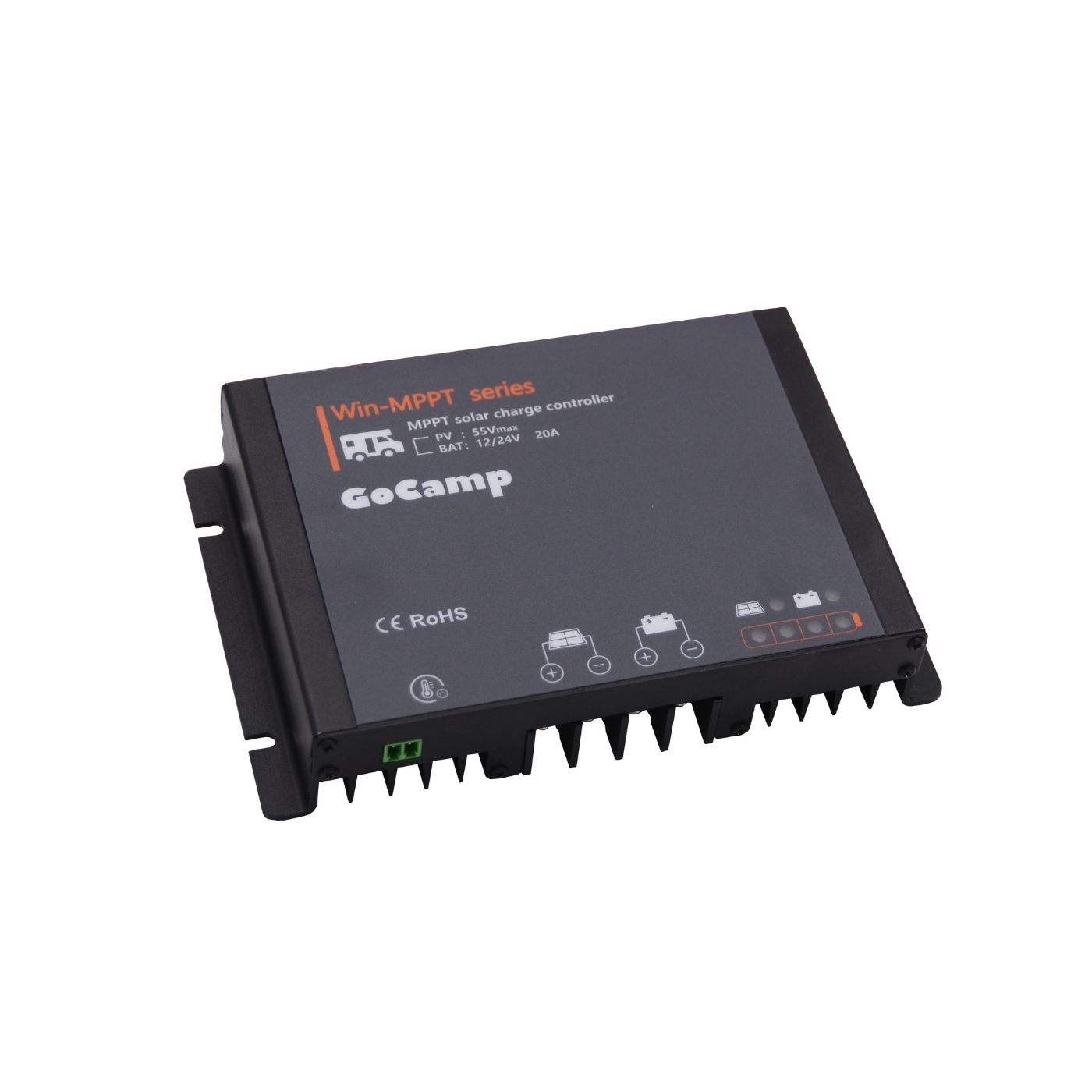

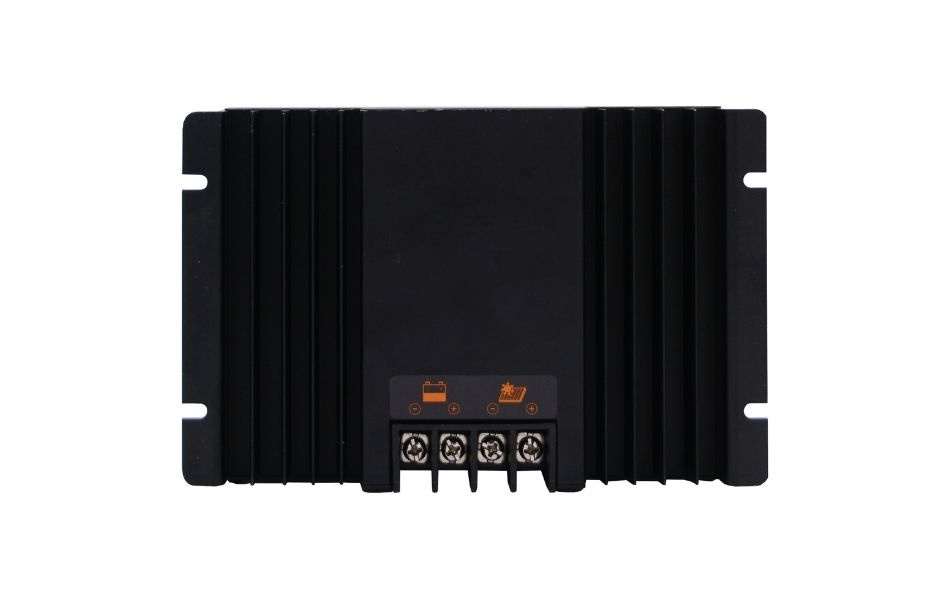

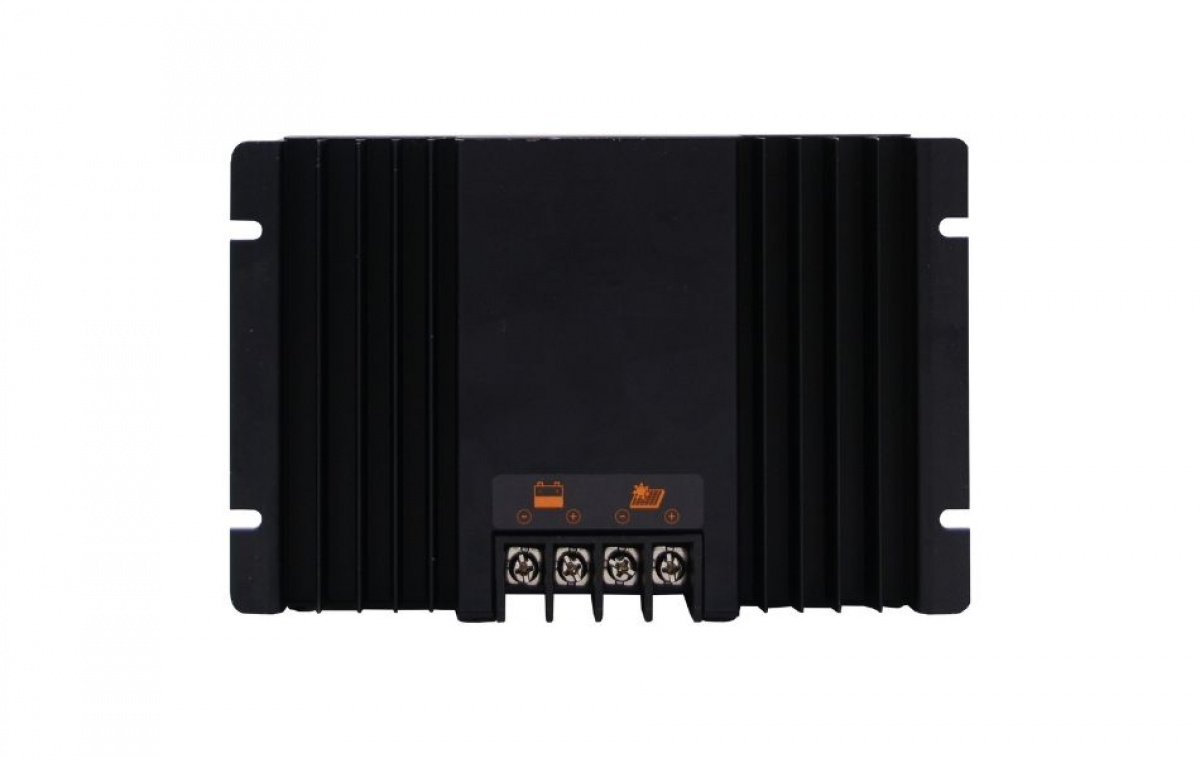

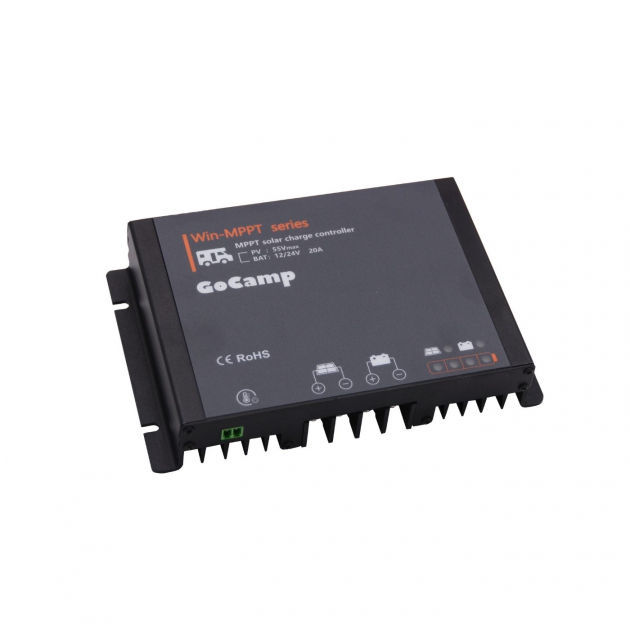

GoCamp Solar Charge Controller MPPT Win 500 20A

Name: GoCamp Solar Charge Controller MPPT Win 500 20A
Brand: GoCamp
SKU: 85019
Price: 121.62 EUR
Availability: InStock

Qty:

Efficient MPPT solar controller for motorhomes, caravans and boats. Up to 98% efficiency and support for lead-acid, AGM, gel and lithium batteries.

€ 121.62

GoCamp

Add to cart

Make your choices

Less than 5 ( in stock)

Fast deliveries
Knowledgeable staff
Over 50 years of experience

Product information
The GoCamp Win 500 20A is an advanced MPPT solar controller that optimizes charging from the solar panel and quickly tracks the panel's maximum power point. This provides efficient energy harvesting even when light conditions vary or in cloudy weather. The controller can improve energy input by up to 30% compared with a PWM controller.

The controller features four-stage charging and automatic overheating protection. With the Cyber-BT adapter, Bluetooth functionality can be added for wireless monitoring and parameter settings through a mobile app.

Benefits
- MPPT technology with up to 98% conversion efficiency
- Fast tracking of the panel's maximum power point
- Up to 30% better energy input compared with PWM
- Four-stage charging
- Supports lead-acid, AGM, gel and lithium batteries
- Automatic overheating protection
- Bluetooth monitoring with Cyber-BT adapter
Technical data
Max. charging current: 20 A
Boost voltage: 14.0 - 14.8 V
Equalization voltage: 14.0 - 15.0 V
Float voltage: 13.0 - 14.5 V
Low-voltage reconnection: 11.4 - 12.8 V
Max. input power: 260 W
Operating temperature: -20 °C - +55 °C
Dimensions (WxLxH): 164 x 107 x 32 mm
Weight: 700 g
Battery type: Lead-acid, AGM, lithium, gel
Product sheet »
Characteristics
Height (mm): 32 mm

Length (mm): 107 mm

Width (mm): 164 mm

Weight: 0,700 kg
