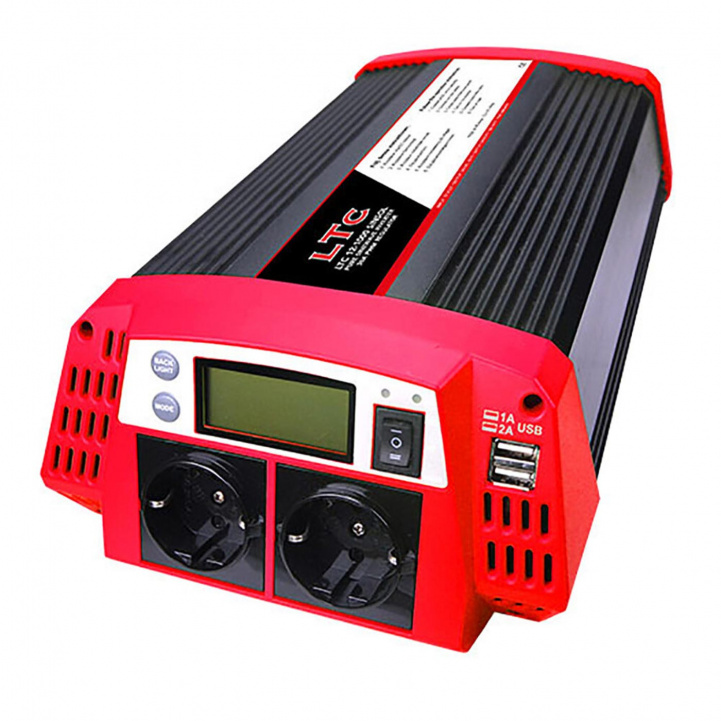

LTC Sinus Inverter with Solar Cell Input

Due to the intelligent design of the unit, the solar panel connects directly to the inverter and charges the battery bank in sunlight. The unit is also equipped with 2 USB ports with a total of 3 AMP. Suitable for powering computers and electronics that require true sine wave. The inverter is of the true sine wave type, meaning the wave is exactly like the wave that comes out of our power outlets.

When drawing power (230 V) from the inverter, the current is converted to true sine wave and powers all equipment that draws up to 1000 W. Keep in mind when choosing an inverter that the device to be connected may draw up to 4-5 times more at the moment of start-up.

DC input
- Battery voltage (VDC) 7 ~ 15.3
- Battery capacity (AH) > 65
- Maximum input current (A) <100
- Standby current (A) <0.75

Solar input
- Voltage (VDC) 16 ~ 45
- Maximum power (W) <500W @ maximum PWM current ≤30A

AC output
- Voltage (VAC) 230
- Frequency (Hz) 50
- Power (W) 1000
- Peak power (W) 1100 @ 20min
- Surge power (W) 2000 @ 1sec
- Conversion efficiency >88%
