Article nr:
84499
LTC Solar 100W Panel Flat Black Line
- Fast deliveries
- Knowledgeable staff
- Over 50 years of experience
- Product information
-

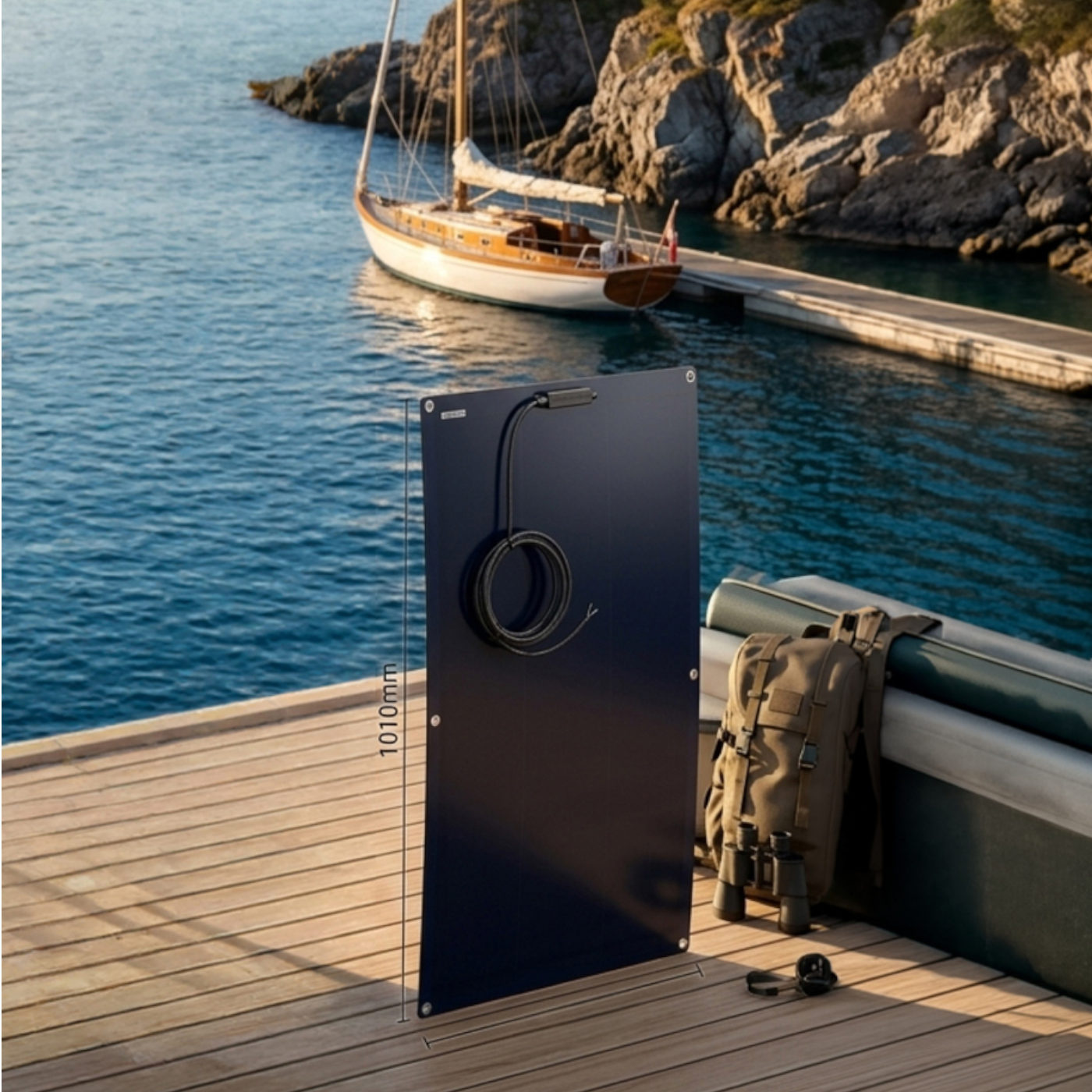

Experience the freedom of renewable energy. The LTC Blackline is a solar panel that combines high performance with a sleek and discreet installation, perfect for boats, motorhomes, or caravans.
Advanced ETFE + HPBC technology
The panel is made from durable ETFE plastic that withstands saltwater, UV radiation, and heavy wear. Inside are modern HPBC cells (Hybrid Passivated Back Contact), where all electrical contacts are located on the rear side. This creates a fully black surface without visible metal grids, improving light absorption and increasing efficiency per unit area.

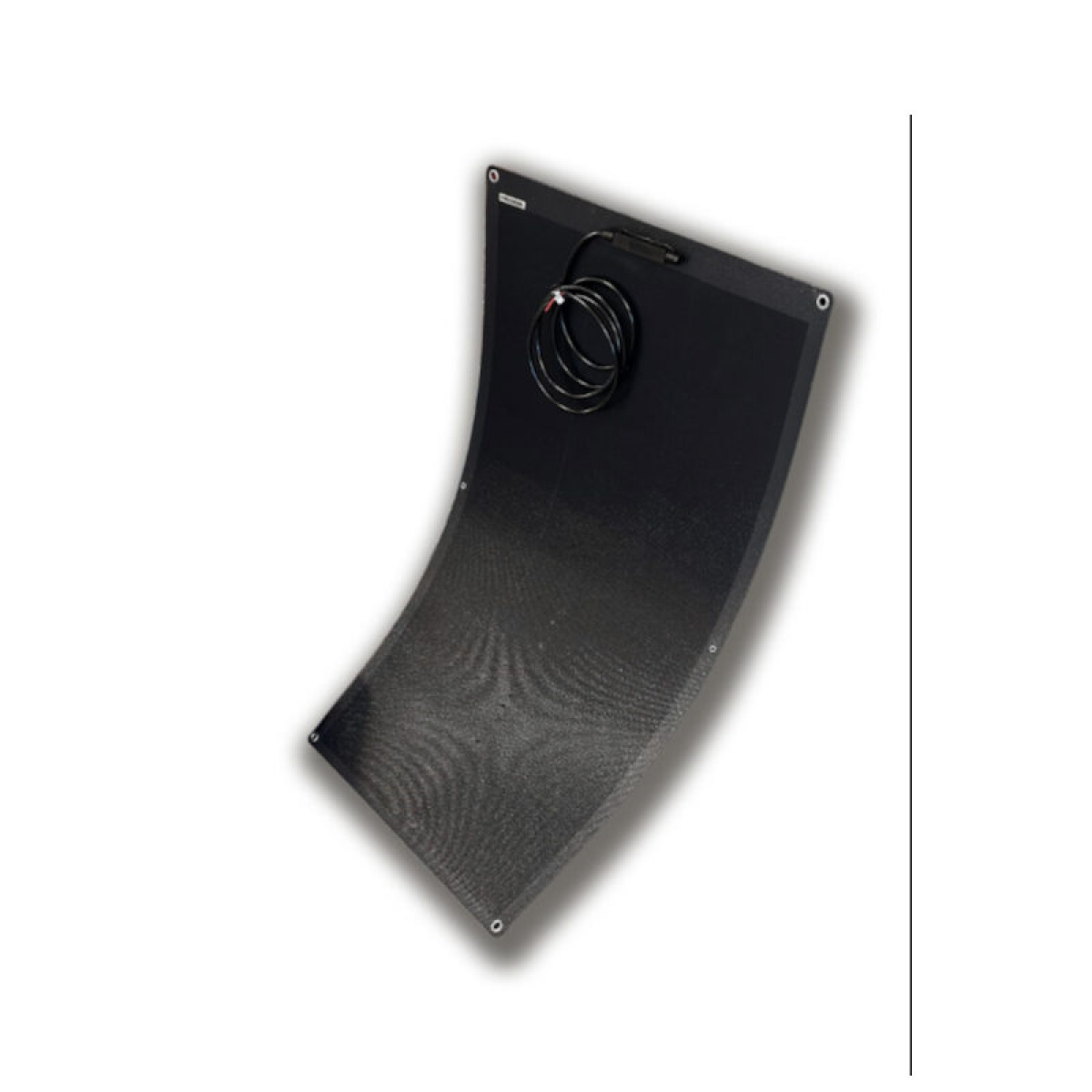

Flexible and ultra-thin
With a thickness of only 2.2 mm and a flexible structure, the panel can easily adapt to curved surfaces, such as a boat roof or the front of a caravan. The low profile also reduces wind resistance and allows the panel to blend seamlessly into the surface.
Ready for easy installation
The LTC Blackline comes with a 2-meter pre-installed cable, making installation quick and convenient regardless of placement.
Specifications:
Maximum Power (Pmax): 100 W (±3% tolerance)
Voltage at Maximum Power (Vmp): 20.7 V
Current at Maximum Power (Imp): 4.84 A
Open Circuit Voltage (Voc): 26.2 V
Short Circuit Current (Isc): 5.21 A
Dimensions: 1010 × 600 × 2.2 mm
Weight: Only 2 kg
Temperature Range: Designed to withstand extreme conditions from -40°C to +85°C
Classification: Application Class A (approved for demanding environments)
The panel is glued directly to the roof using, for example, Sikaflex.
Cable gland and controller are not included. - Characteristics
-
