We provide a performance guarantee on our solar cells as follows: 90% for the first 10 years and at least 80% for a total of 25 years.

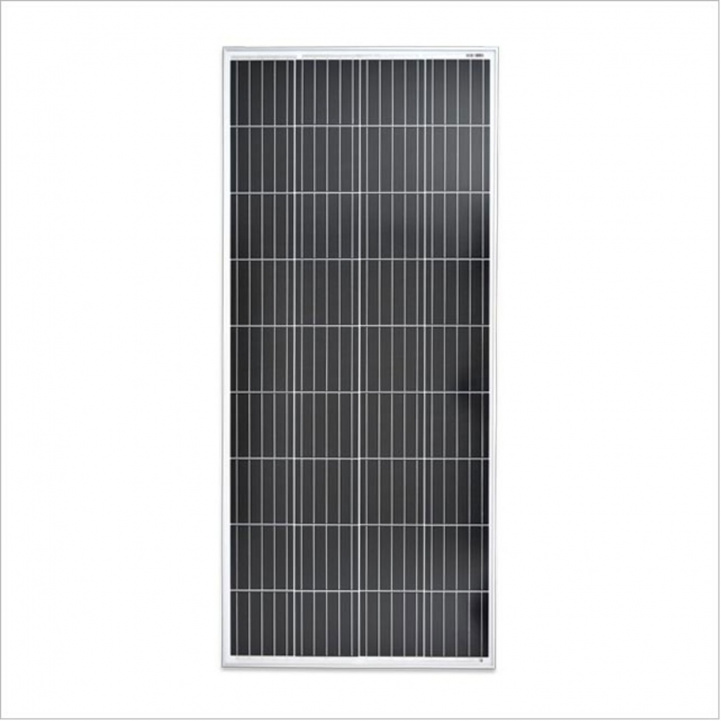

There are 2 types of solar cells constructed with an aluminium frame, Monocrystalline (Mono) and Polycrystalline (Poly). Mono is recognised by its bright blue almost black colour, while Poly has a more speckled blue shade.
Mono cells consist of single crystal blocks which gives them a higher efficiency due to purer silicon than Poly cells which have many small crystals. This is particularly noticeable in cloudy weather and when the sun does not have a direct angle to the panel (indirect solar radiation). Mono cells generally have a longer lifespan.
Specifications:
- Nominal maximum power (Pmax): 200W
- Tolerance: 0 - +3 %
- Voltage at Pmax (Vmp): 19.8V
- Current at Pmax (Imp): 10.1A
- Open circuit voltage (Voc): 23.3V
- Short circuit current (Isc): 10.9A
- Nominal operating cell temperature (NOCT): 50
- Maximum system voltage: 1000VDC
- Maximum series fuse: 15A
- Operating temperature: -40C to +86C
- Application class: A
- Size: 1500 x 680 x 35 mm
- Weight: 11.8 kg
- Monocrystalline: YES
- Mounting rail and cable entry included: NO
- Cable length: 6M
