Name: Renogy Battery Shunt
Brand: Renogy
SKU: 81476
Price: 157.62 EUR
Availability: InStock

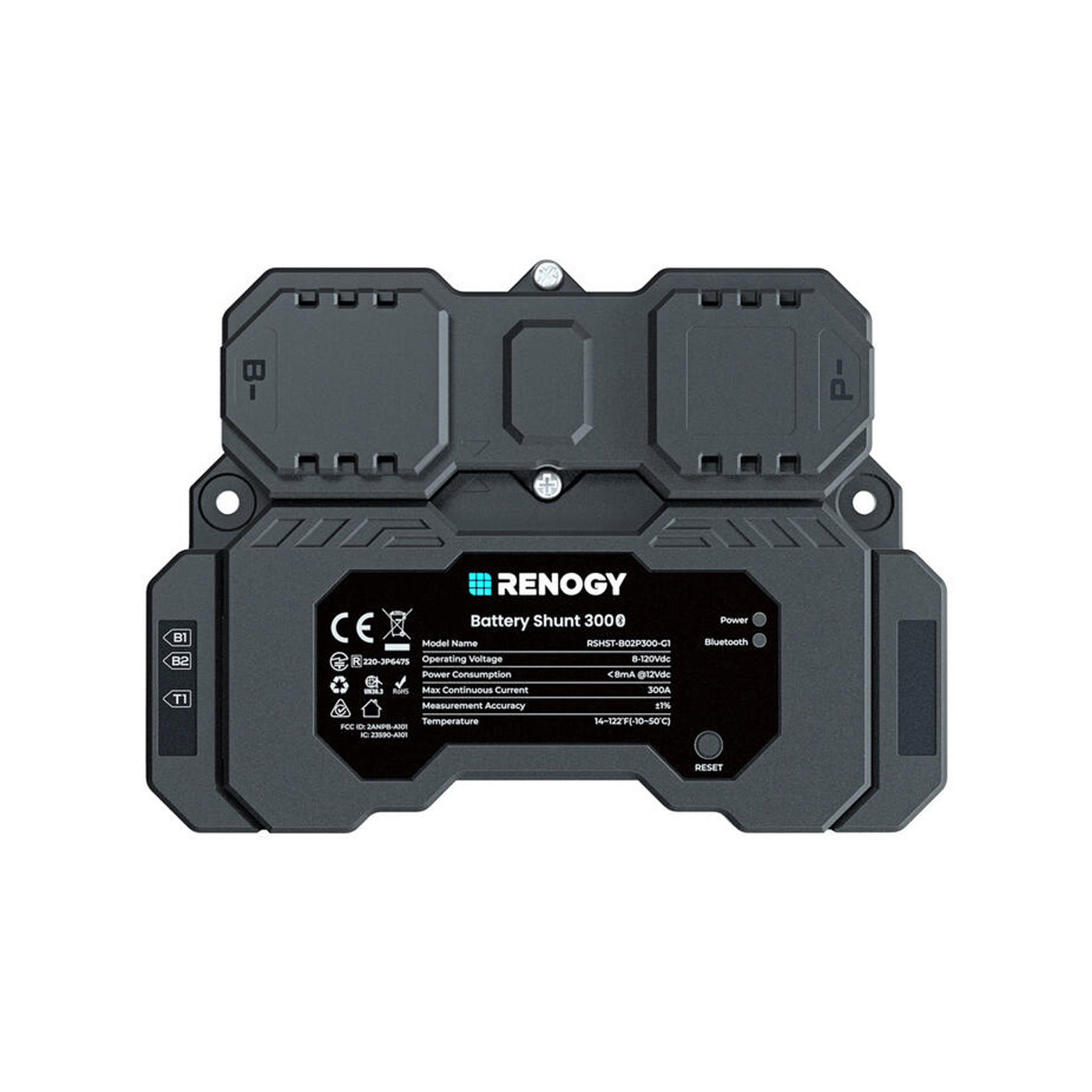

The Renogy 300A Battery Shunt with Bluetooth is designed for precise and wireless monitoring of solar energy systems. With integrated Bluetooth LE and BLE Mesh, you can easily track current, battery capacity, and temperature via a compatible LCD remote panel.

The shunt measures continuous currents up to 300A and handles peaks up to 500A for short periods. It supports battery capacities from 1 to 6500Ah and voltage from 8–60V. The temperature sensor provides accurate readings with ±1% precision.

The unit mounts easily on a wall with M10 bolts. It is compact, lightweight, and robust, with certifications including CE, FCC, RCM, and RoHS, making it a reliable choice for both mobile and stationary setups.

Technical data
Model: RSHST-B02P300-G1
Power supply: 8–120 VDC
Power consumption: <0.1 W
Communication: Bluetooth LE and BLE Mesh
Max continuous current: 300A
Max peak current: 500A (<10s)
Current accuracy: ±1%
Current resolution: 0.01 A
Battery capacity: 1–6500Ah
Voltage input range: 8–60V
Voltage resolution: 10 mV
Temperature sensor range: -20~80℃
Temperature sensor accuracy: ±1%
Operating temperature: -20℃ to 50℃
Operating humidity: 0–95% RH
Maximum operating altitude: <2000 m
Installation: Wall-mounted
Battery connection: M10 bolts
Weight: 260 g
Dimensions: 134 x 97 x 31 mm
Warranty: 1 year
Certifications: CE, FCC ID, IC ID, RCM, TSCA, RoHS, UN38.3, TELEC
