Article nr: 81464

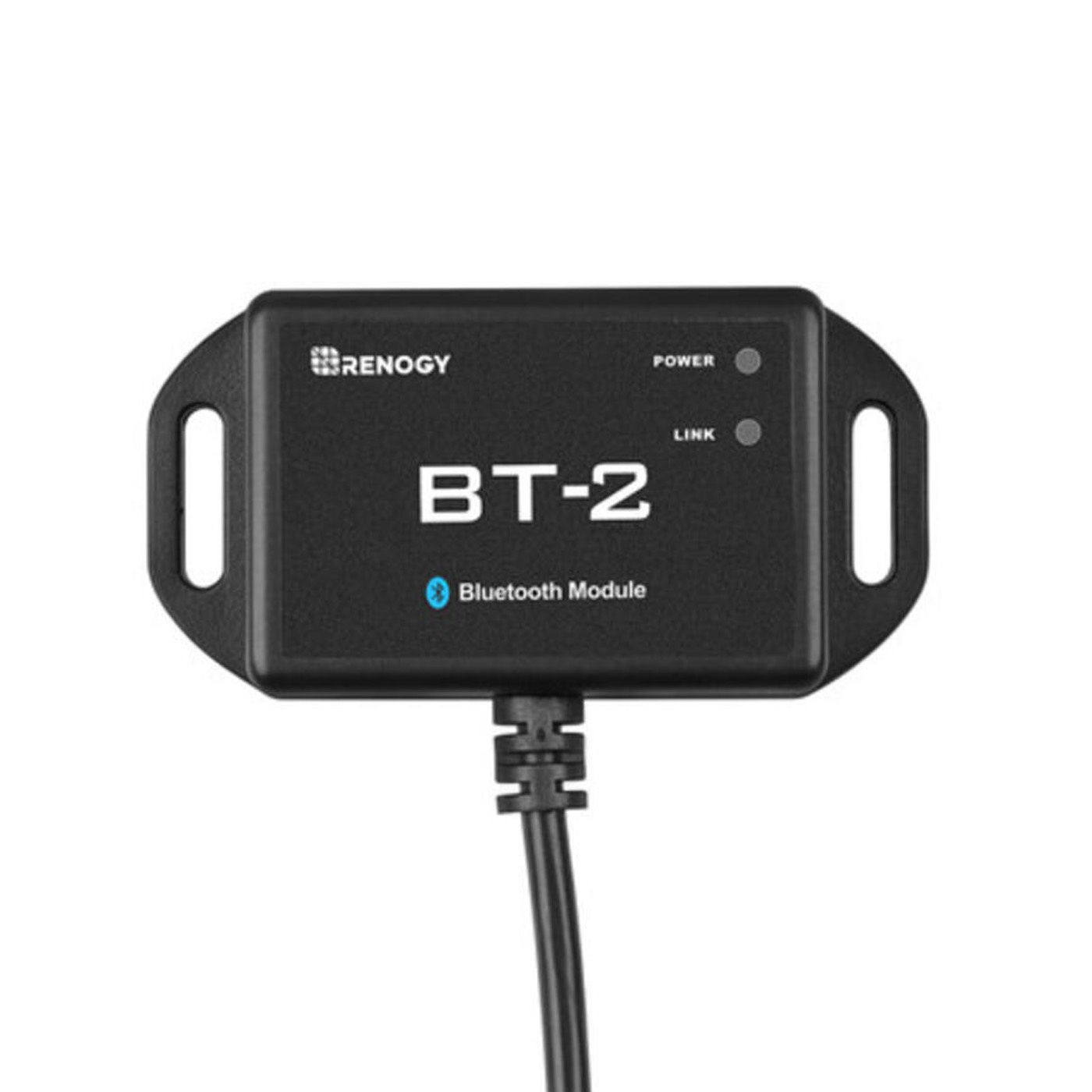

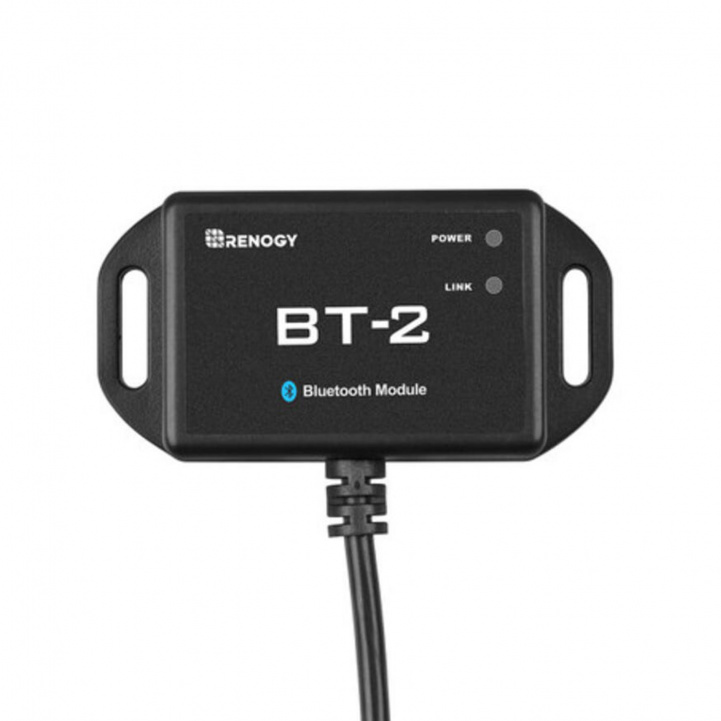

Renogy Bluetooth Module BT2

Name: Renogy Bluetooth Module BT2
Brand: Renogy
SKU: 81464
Price: 53.70 EUR
Availability: InStock

Qty:

Renogy BT-2 – next-generation Bluetooth module for smart monitoring of controllers, batteries, and inverters via the DC Home app.

€ 53.70

Add to cart

Make your choices

Less than 5 ( in stock)

Product information
The Renogy BT-2 is the next-generation Bluetooth module that allows easy wireless monitoring and control of compatible Renogy products. It works with selected solar charge controllers, DC-DC battery chargers, smart lithium batteries, and inverters.

Powered via its RJ45 communication port, the BT-2 enables users to view system data, change parameters, and monitor operations directly through the Renogy DC Home app on smartphones or tablets. With BT-2, your off-grid system becomes smarter and easier to manage.

Compact, energy-efficient, and IP54-rated, the BT-2 is robust and reliable for both mobile and stationary installations.

Technical Data
Communication Protocol: RS485
Port Type: RJ45
Input Voltage: 5 V or 12 V
Protection Grade: IP54
Power Consumption (standby/operating): 0.04 W / 0.05 W
Communication Range: ≤ 25 m (82 ft)
Serial Baud Rate: 9600 bps (fixed)
Cable Length: 5.0 m
Dimensions: 67.3 × 35 × 14 mm
Installation Dimensions: Ø 67.3 mm, screw hole Ø 3.5 mm
Operating Temperature: –20 °C to +85 °C
Weight: 130 g
