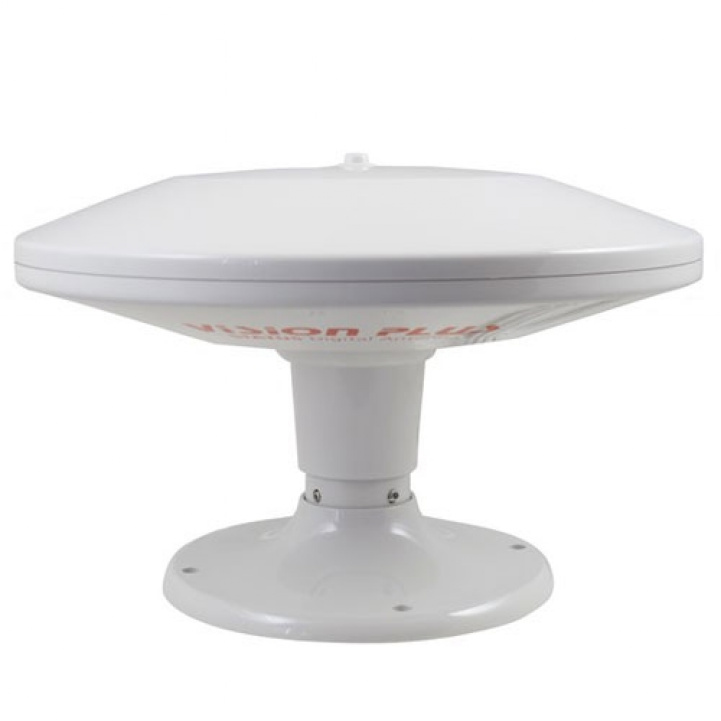

The antenna is supplied with a Vision Plus VP3/C1 amplifier featuring adjustable gain. The amplifier provides three TV outputs and one radio output, allowing several TVs and a radio to be connected. The system operates on 12 or 24 V DC, making it well suited to motorhomes and caravans.
Status 350 has a compact design and offers several mounting options. The antenna can be installed using a mast, angle adjustment, suction pad or as a removable antenna, depending on the installation and requirements.
Benefits
- Omni-directional antenna for easy use while camping
- Designed for digital TV signals
- Supports FM and DAB radio reception
- Built-in amplifier with adjustable gain
- Three TV outputs and one radio output
- Operates on 12 or 24 V DC
- Several mounting options
- Suitable for caravans, motorhomes and camping
Technical data
TV frequency range: UHF 470-694 MHz
Radio frequency range: FM 88-108 MHz
Radio frequency range: DAB 174-230 MHz
Gain: 0 to 15 dB
Gain adjustment: ±1.5 dB
Noise figure: <2.2 dB
Impedance: 75 ohms
Signal handling: 80 dBµV
Power consumption: 1.0 W
Power supply: 10.8-28 V DC
Coaxial cable: 1 m
Antenna diameter: 315 mm
Overall height: 180 mm
Foot diameter: 185 mm
VP3/C1 amplifier: 157 x 46 x 28 mm
Total system weight: 1.15 kg
