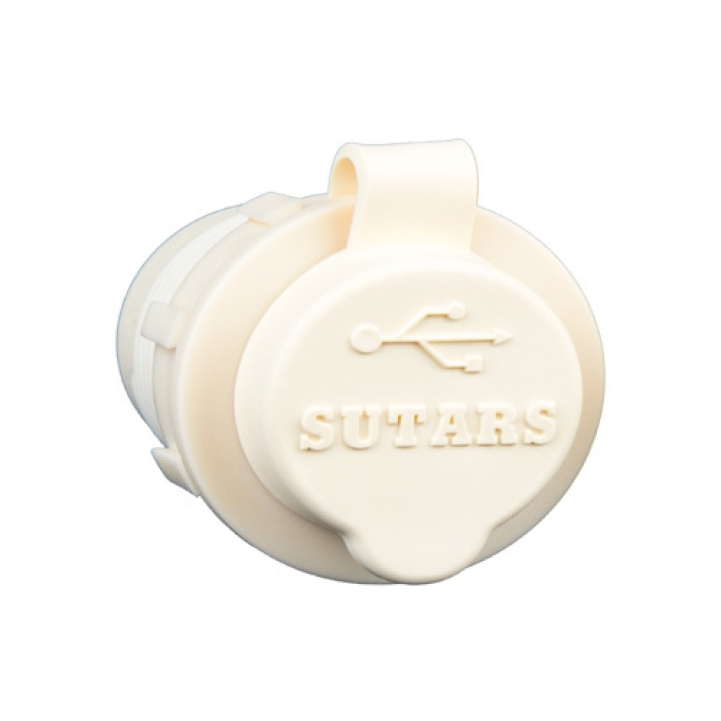

Sutars USB Socket For Recessed Installation

Safe, powerful, and built for tough environments. Sutars' flush-mount USB socket is the obvious choice for those who need reliable power in work vehicles, boats, or other demanding settings.

With an IP65 rating (when the lid is closed), this USB socket resists rain, dirt, and dust. Perfect for outdoor use and demanding applications. The total output of 5A, regardless of whether one or both USB ports are used, ensures fast and efficient charging. That’s significantly more than standard sockets offering 1A + 2.1A.

Installation is easy thanks to a smart mounting nut with built-in barbs. You can tighten it with a standard screwdriver, even in tight spaces that are otherwise hard to access.

Technical Information:

• Input voltage: 8–29 V (suitable for both 12 V and 24 V systems)
• Output voltage: 5 V DC ±2 %
• Max output current: 5 A (not split per port)
• Connections: 6.3 mm spade terminals
• Mounting hole: Ø 30–32 mm
• Max panel thickness: 17 mm
• IP rating: IP65 (with lid closed)
• Materials:
• Lid: TPE
• Sleeve: PS
• Housing: PA6
• Connectors: Nickel-plated brass
• Installation depth: 38 mm
