Tramigo OBD

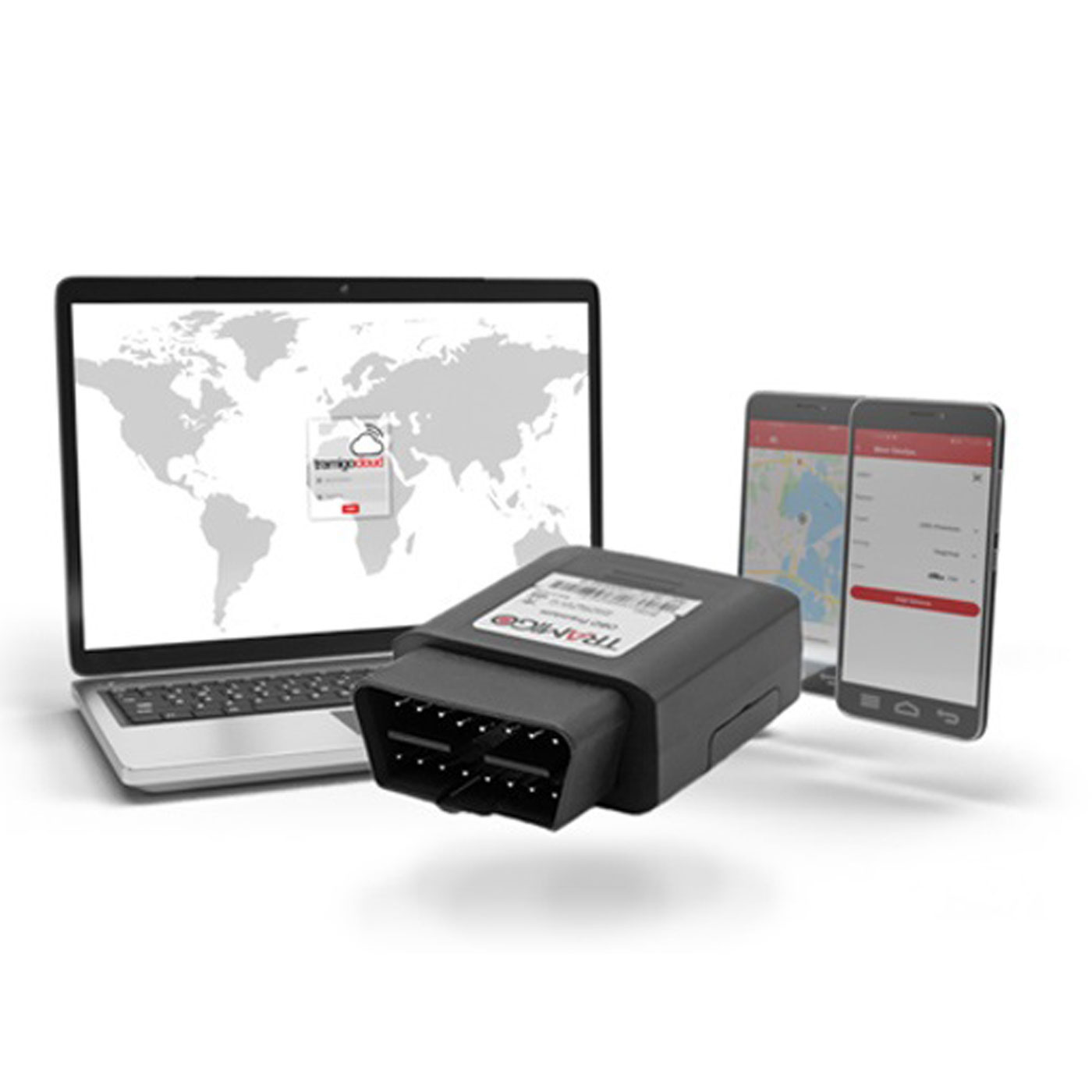

Tramigo OBD 4G GPS Tracker – Plug & Play for Smart Vehicle Monitoring
Keep full control of your vehicle with the Tramigo OBD 4G – a compact and powerful GPS tracker that plugs directly into the car’s OBD port. No installation required. Perfect for both private users and businesses.

The device features built-in eSIM, GNSS positioning via GPS and BDS, and real-time driving behavior analysis through the Tramigo app and Tramigo Cloud. Thanks to 4G with 2G fallback, you stay connected – even in areas with weak coverage.

• Plug & Play – no installation, just connect to the OBD port
• GPS and BDS positioning – accurate tracking via dual satellite systems
• Driving behavior detection – alerts for harsh braking, acceleration, cornering, and collisions
• Geofencing – define zones and get alerts when the vehicle enters or leaves
• Trip history – view route, distance, and times
• Ignition detection – identifies when the vehicle starts or shuts down
• Built-in eSIM – secure global connectivity without a physical SIM
• Built-in battery – continues tracking even if tampered with
• 4G with 2G fallback – reliable connectivity nationwide

• Tramigo OBD 4G unit
• Built-in eSIM
• Access to Tramigo App and Tramigo Cloud

• Connection: Standard 16-pin OBDII
• Interface: 1 x USB Type-C
• LED indicators: GNSS (blue), Mobile network (green)
• Data storage: 8 + 16 MB
• Battery: 50 mAh, 3.7 V
• Operating voltage: 9–36 V DC
• Temperature range: -20 to +70 °C
• Humidity: 5 to 95%, non-condensing

• ISO 9141-2 (5 baud init, 10.4 kbaud)
• ISO 14230-4 KWP (5 baud init and fast init)
• ISO 15765-4 CAN (11 and 29 bit ID, 250 and 500 kbaud)
• SAE J1939 CAN (29 bit ID, 250 and 500 kbaud)
