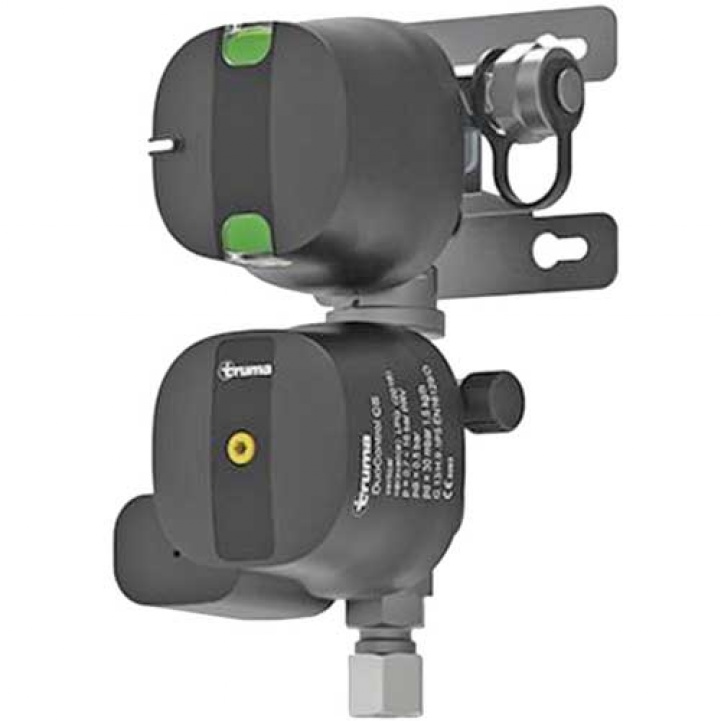

The new generation Truma DuoControl CS gas pressure regulator allows two gas cylinders to be connected in a motorhome or caravan. The system automatically switches to the second gas cylinder when the operating cylinder is empty.
The integrated crash sensor enables safe heating even while driving and prevents gas leakage, for example after a collision. The triggered crash sensor is easy to identify and reset. The regulator indicates which cylinder is in use and whether it is full or empty, and ensures automatic changeover from the empty to the full gas cylinder.
Technical data:
- Gas type: Propane / butane
- Inlet pressure: 0.7–16 bar
- Outlet pressure: 30 mbar
- Regulator capacity: 1.5 kg/h
- Regulator inlet: External thread M20 x 1.5 (G.13)
- Regulator outlet: Compression fitting 10 mm or 8 mm (H.9)
- Trigger value: 3.5 g ± 0.5 g (horizontal)
- Weight: 0.9 kg
