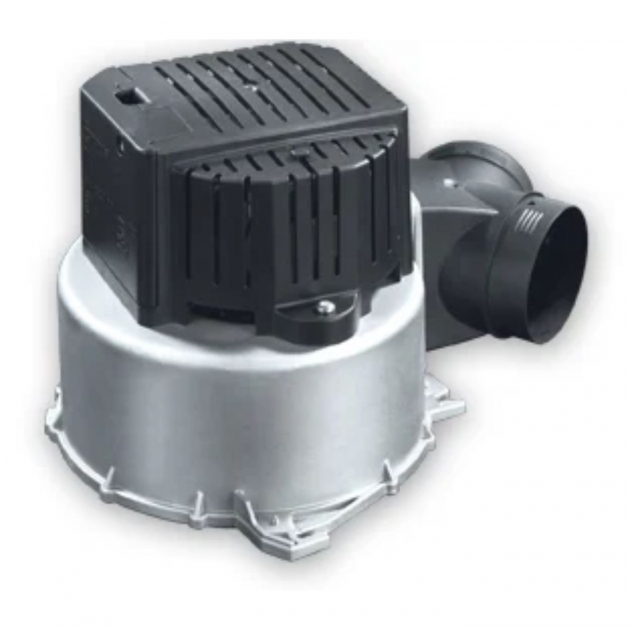

The integrated control unit makes the fan easy to operate. Automatic speed control adjusts the airflow as needed. The booster function provides up to 20% more airflow, helping distribute warm air more effectively and quickly while improving dehumidification. The fan can be connected to ÜR warm air ducting with a 65 mm diameter or VR ducting with a 72 mm diameter.
Replaces the previous TEB 2 model. The control knob on the TEB 3 has a slightly larger diameter than the one on the TEB 2, so the existing opening may need to be enlarged with a round file to accommodate the knob. The rear mounting does not align directly with the existing holes either. You can install a screw to the side or purchase an adapter plate for an exact fit. Contact customer service for an adapter plate.
Benefits
- Compatible with Truma S 3004 and S 5004
- Integrated control unit
- Booster function provides up to 20% more airflow
- Improved and faster warm air distribution
- Helps with dehumidification
- Automatic speed control
- Compatible with 65 mm and 72 mm warm air ducts
- Replaces the previous TEB 2 model
Technical data
Article number: 41240-01
Model: TEB-3
Voltage: 12 V
Current consumption: 0.2-1.2 A, approximately 0.7 A on average
Airflow without warm air duct: 149 m³/h
Airflow with 65 mm duct: 104 m³/h
Airflow with 72 mm duct: 122 m³/h
Weight: 1.1 kg
Control unit: Integrated
Booster function: Yes, up to 20% more airflow
