Name: AL-KO UP4 Electric Support Legs - Caravan
Brand: AL-KO
SKU: 68775
Price: 1637 EUR
Availability: InStock

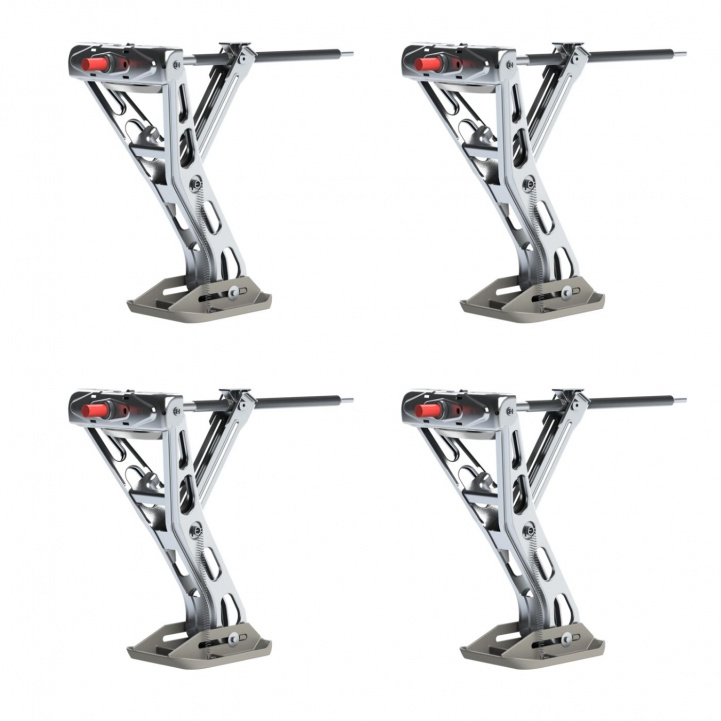

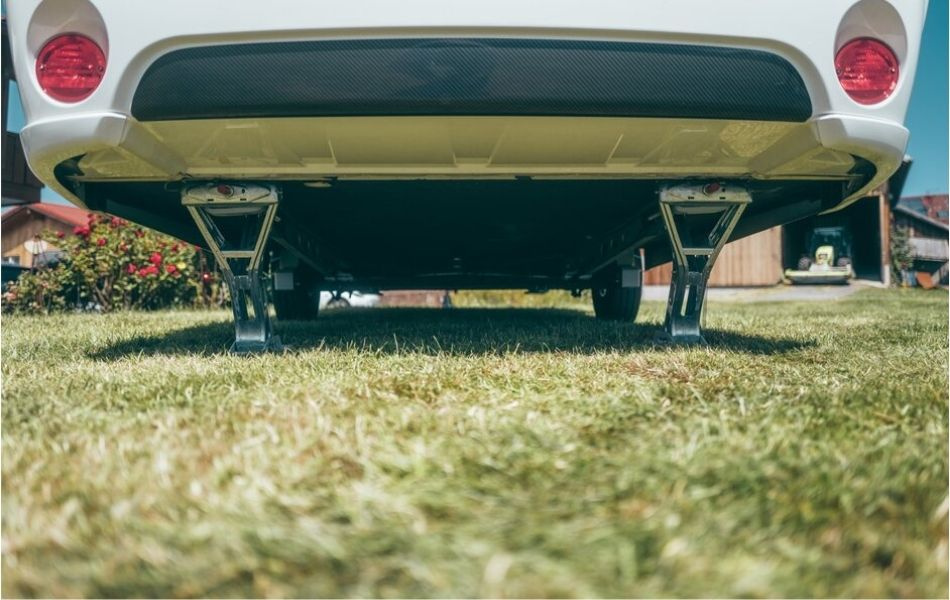

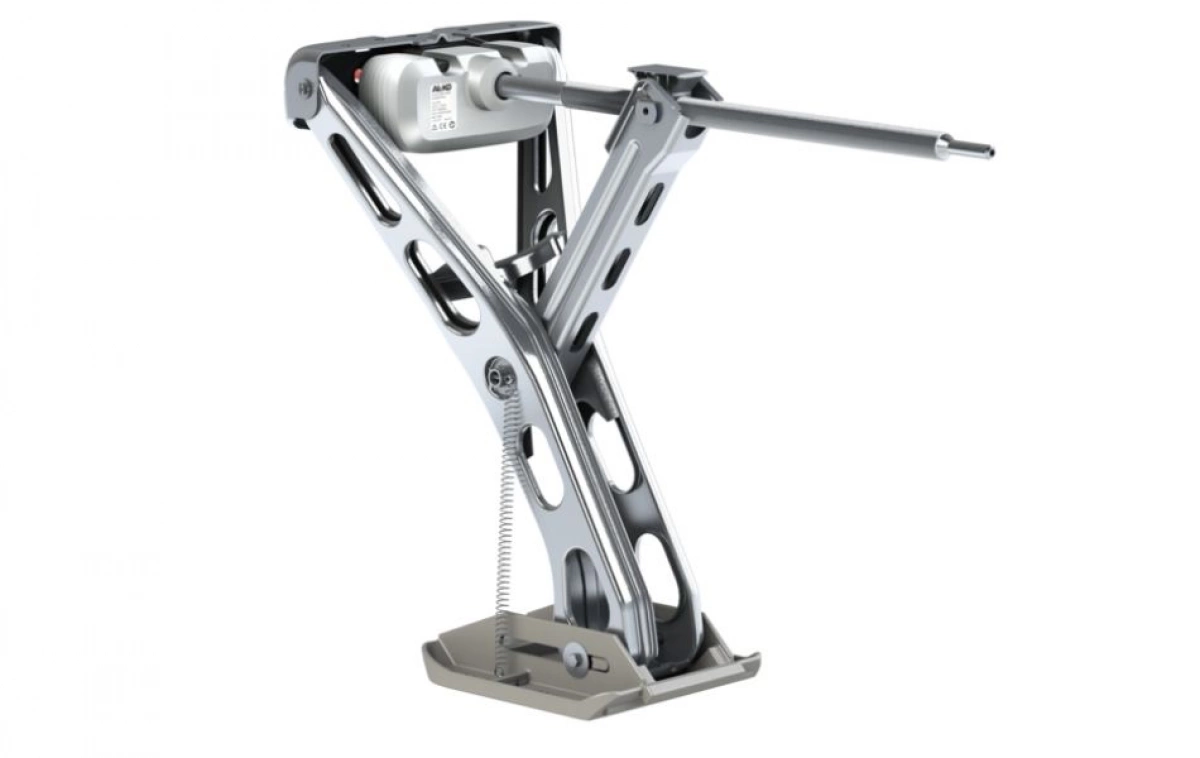

UP4 is the electronic support leg system that makes setting up a caravan easy and safe. Four powerful support legs extend at the push of a button on the remote control and can be adjusted individually for perfect leveling. The system is suitable for caravans up to 2.5 tons and provides long-lasting corrosion protection thanks to hot-dip galvanized parts. The electric drive unit is protected by a plastic housing, and the support legs have integrated steel protection that can only be handled with a special adapter.

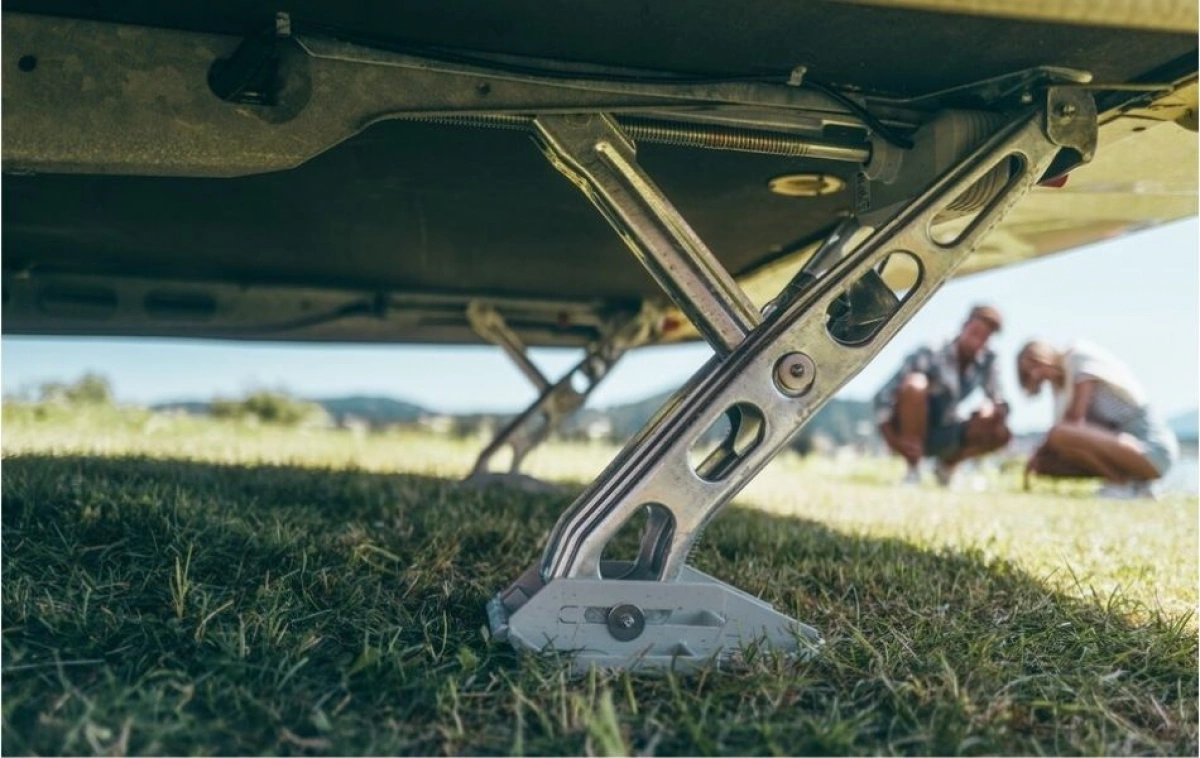

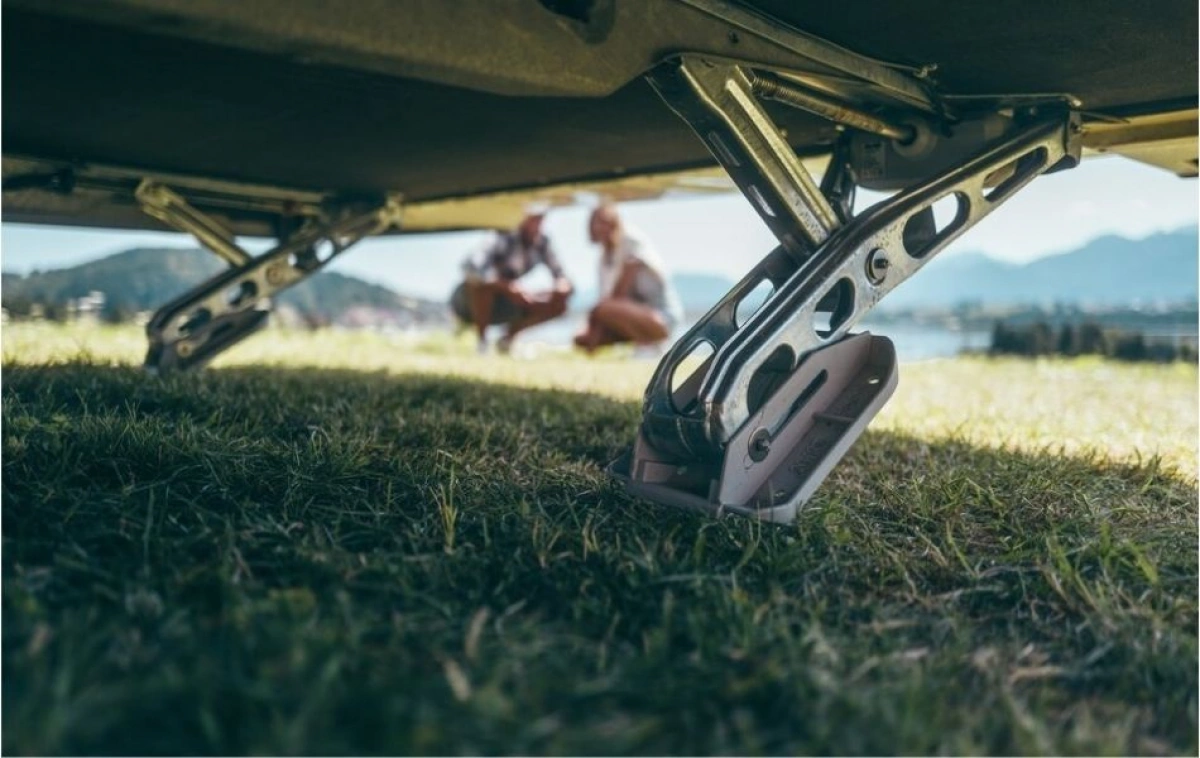

The premium support legs come standard with AL-KO Big Foot, providing stable setup on any surface. UP4 can be combined with AL-KO RANGER for millimeter-precise parking and maneuvering using the same remote control.

Advantages

Faster – the support legs extend automatically at the push of a button, faster than manual systems.

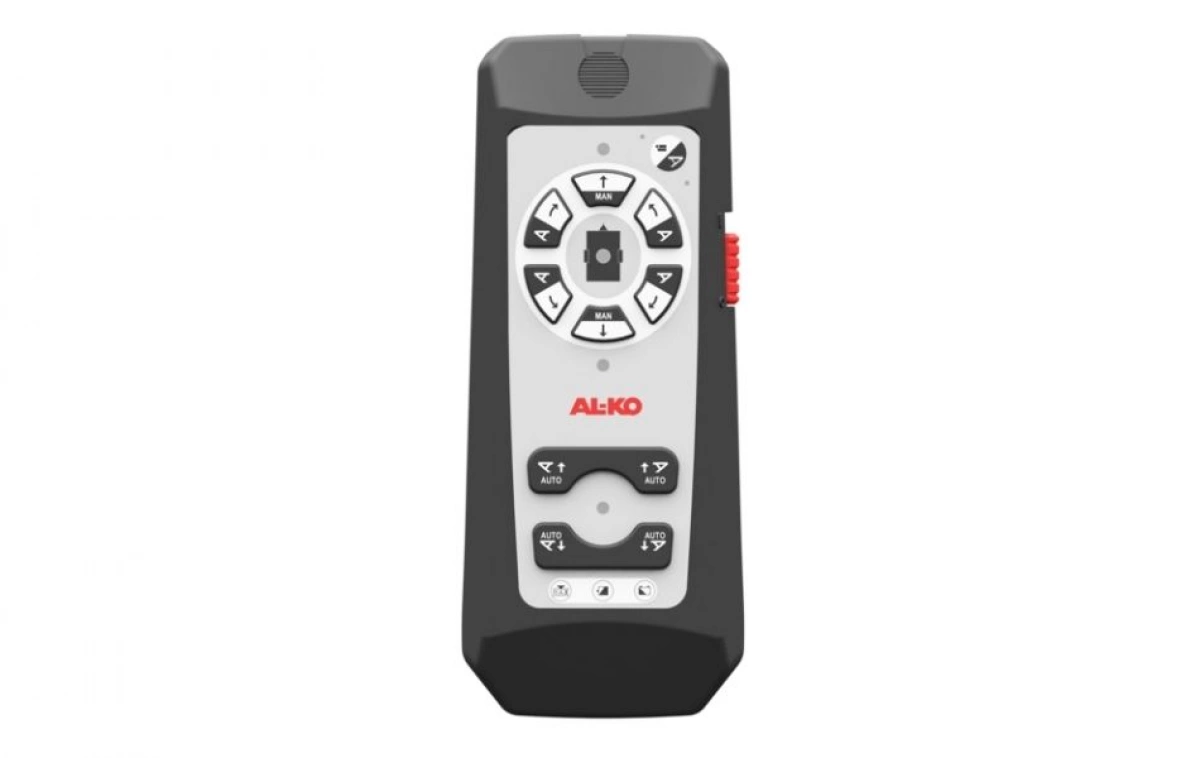

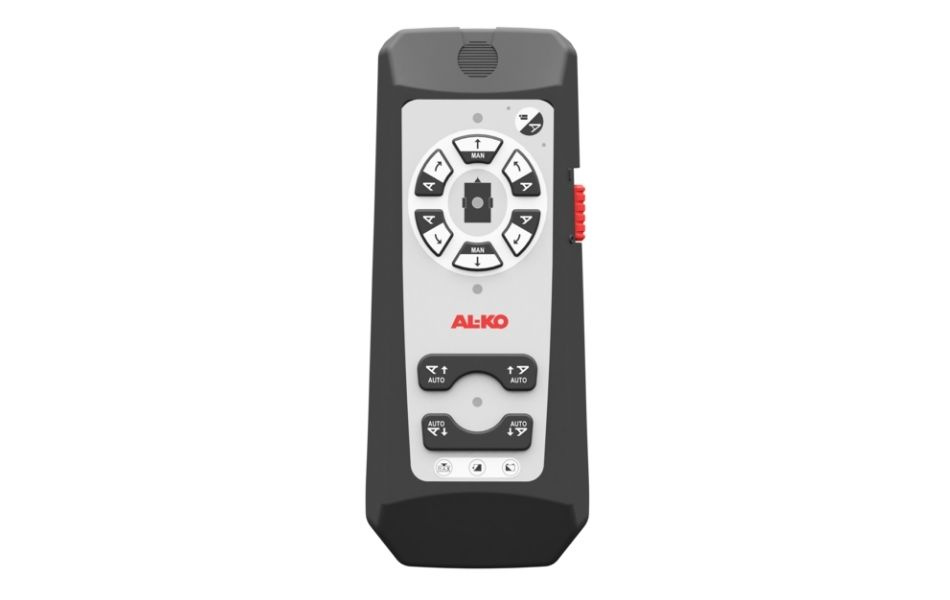

More convenient – adjust the support legs easily with the remote control, saving your back.
More stable – uneven surfaces are leveled electronically, and Big Foot ensures stability.
Smarter – combine with AL-KO RANGER and park the caravan precisely with a single remote control.

Technical data
Weight: 40 kg
Additional weight: 17.5 kg
Max. permitted vehicle weight: 2500 kg
Power supply: 12 V DC
Average energy consumption: 6 Ampere
Remote control transmission frequency: 868 MHz
Min. vehicle weight: 800 kg
Support leg power source (battery): 12 V Ah (min.)
Remote control power source (battery): PP3 9 V
Max. power consumption: 24 Ampere
Contents of Delivery: 4 support legs, 4 BigFoots, remote control, mounting materials & manual.
Vehicle: Caravan
