The system is available with two or four support legs. Four support legs provide fully automatic leveling and optimal control of the entire motorhome. Each support leg has a lifting capacity of 2000 kg, and the system is suitable for vehicles up to 5 tons.

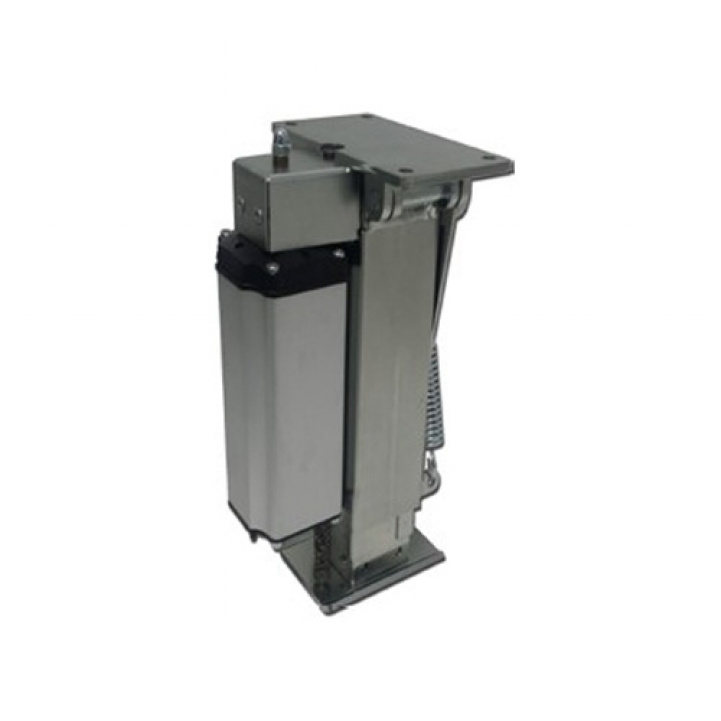

The support legs are galvanized for long service life and equipped with waterproof motors. The system can be retrofitted to most common chassis, provided that approximately 34 cm of ground clearance is available.
Function and comfort
- Automatic leveling via control panel or remote control
- Automatic or manual adjustment with 4 support legs
- Quick stabilization of the motorhome
- Automatic retraction at the push of a button
Please note that automatic leveling does not function with only 2 support legs.
Safety
- The support legs can only be operated when the parking brake is engaged
- Warning signal activates if the parking brake is released or the ignition is switched on
- Manual retraction possible in the event of a power failure

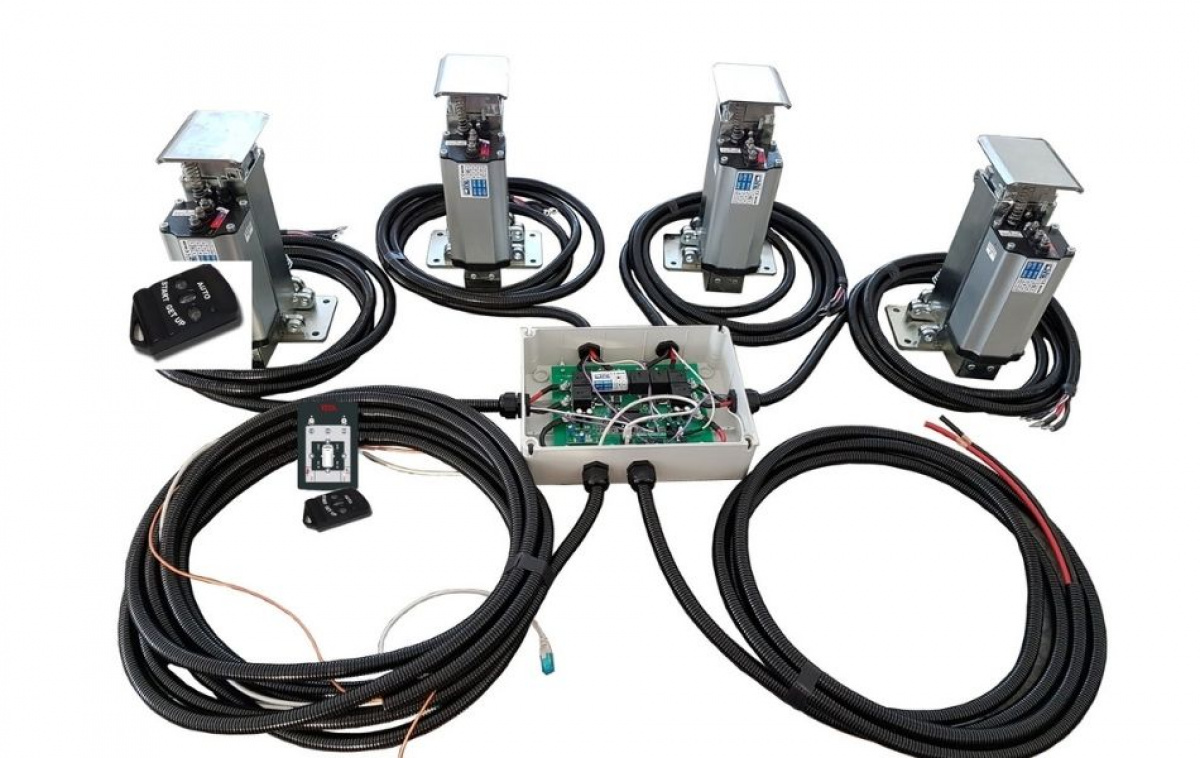

Delivered complete with:
- Support legs
- Pre-wired control unit

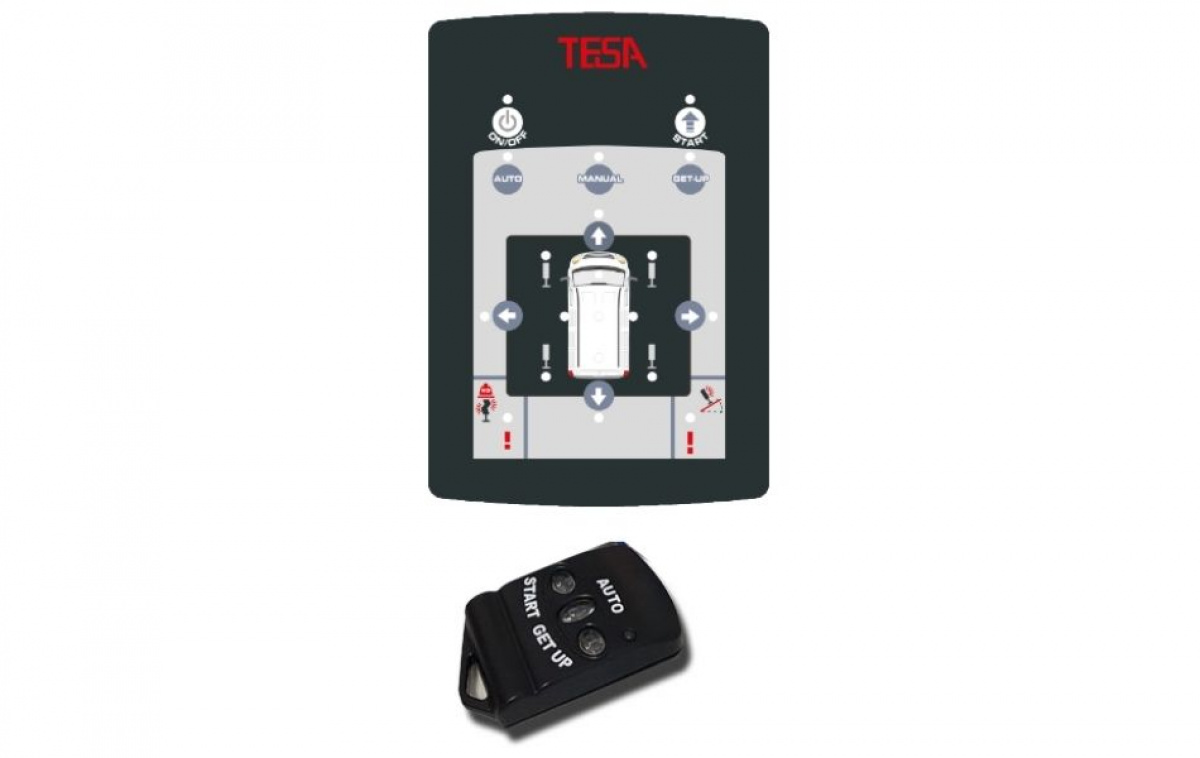

- Control panel
- Remote control
- Cables
See adapter under accessories for the product, find out what chassis your motorhome is built on, and add the correct adapter for a complete installation. Not included as standard.
With the included extension parts, the length can be adjusted from 300 mm up to 420 mm. The adjustment range is a constant 180 mm.
Advantages of a mechanical system
- Maintenance-free – no oil system
- Operates in extreme temperatures
- Less affected by lateral pressure than hydraulic systems
- Not sensitive to dust or pressure loss
- Lower weight – optimal for motorhomes up to 5 tons
Suitable for: Motorhome
