Van-Swing is mounted to the existing towbar using a flange ball and fits almost all standard towbar-mounted bike carriers. The maximum load capacity is 60 kg, including the bike carrier itself. If the bike carrier weighs 15 kg, for example, the bicycles can have a combined maximum weight of 45 kg.
The swing module can be configured with the hinge on the left or right side. Left-side positioning provides convenient access to the rear doors without having to walk around the swing arm. Right-side positioning means that the swing arm moves towards the kerb side, providing an additional safety advantage.

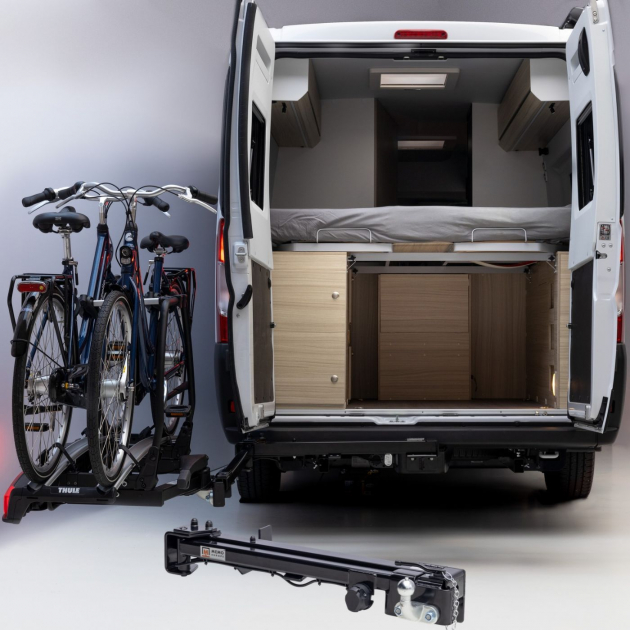

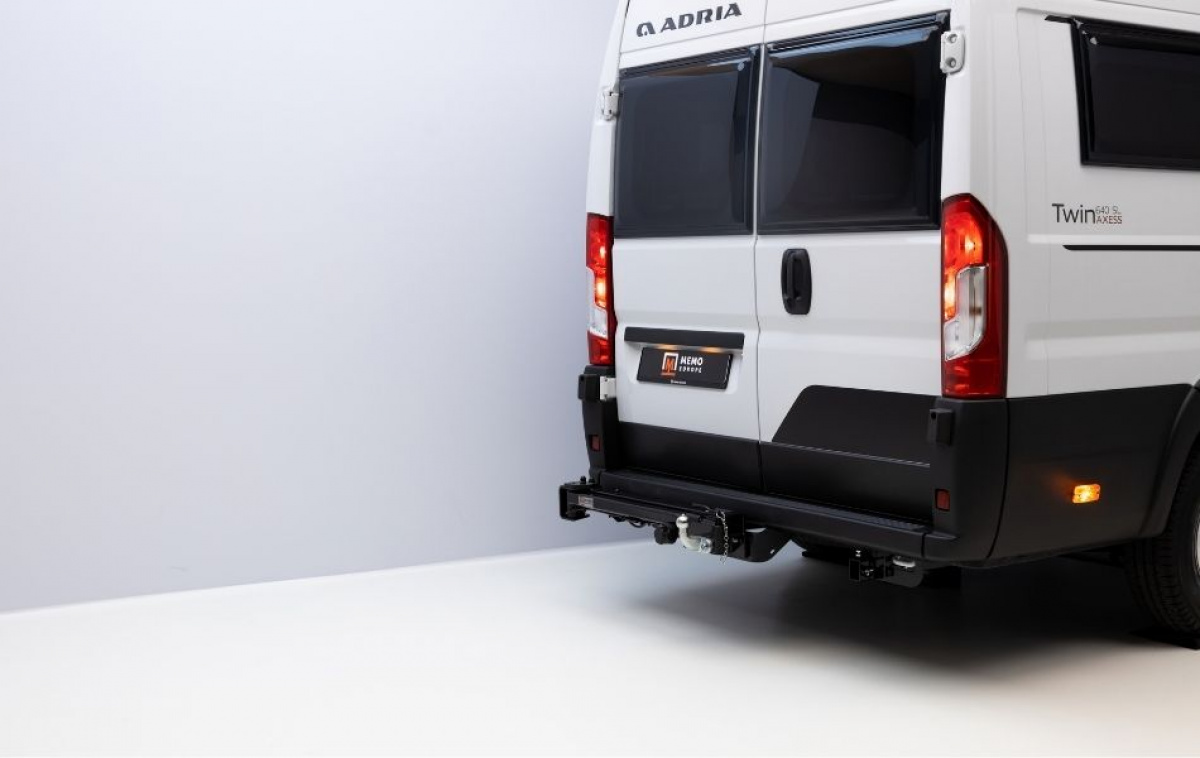

The image shows a Van Swing R (right) that extends towards the pavement when swung out.
Van-Swing has European type approval and is designed for safe use on the road. A locking pin keeps the carrier securely in the closed position. The rotating structure is made of powder-coated steel for a robust and durable solution.
Van-Swing is intended for Fiat Ducato, Citroën Jumper and Peugeot Boxer from 2006, as well as Opel/Vauxhall Movano from 2021 and Toyota ProAce Max from 2024. Always check that your specific towbar and bike carrier are compatible before installation.
Please note that Van-Swing is only a swing module. Bike carrier not included.
Benefits
- Provides easy access to the rear doors without removing the bike carrier
- Smart hinge system for easy swinging to the side
- Fits almost all standard towbar-mounted bike carriers
- Load capacity of 60 kg including the bike carrier
- Hinge can be positioned on the left or right side
- Locking pin secures the module in the closed position
- Mounts to the existing towbar with a flange ball
- European type approval
- Robust powder-coated steel construction
Technical data
Width: 960 mm
Width from centre of motorhome: 900 mm
Net weight: 22 kg
Load capacity: 60 kg including bike carrier
Material, rotating structure: Powder-coated steel

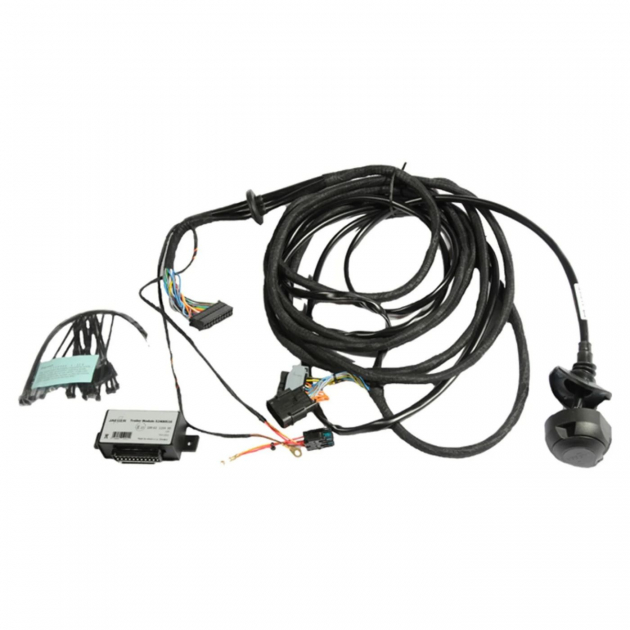

Cable: 13-pin Jaeger connector
Vehicles: Fiat Ducato 2006-, Citroën Jumper 2006-, Peugeot Boxer 2006-, Opel/Vauxhall Movano 2021-, Toyota ProAce Max 2024-
Bike carrier: Bike carrier not included
