Van-Swing is mounted to the existing towbar using a flange ball and fits almost all standard towbar-mounted bike carriers. The maximum load capacity is 60 kg, including the bike carrier itself. If the bike carrier weighs 15 kg, for example, the bicycles can have a combined maximum weight of 45 kg.
The swing module can be configured with the hinge on the left or right side. Left-side positioning provides convenient access to the rear doors without having to walk around the swing arm. Right-side positioning means that the swing arm moves towards the kerb side, providing an additional safety advantage.

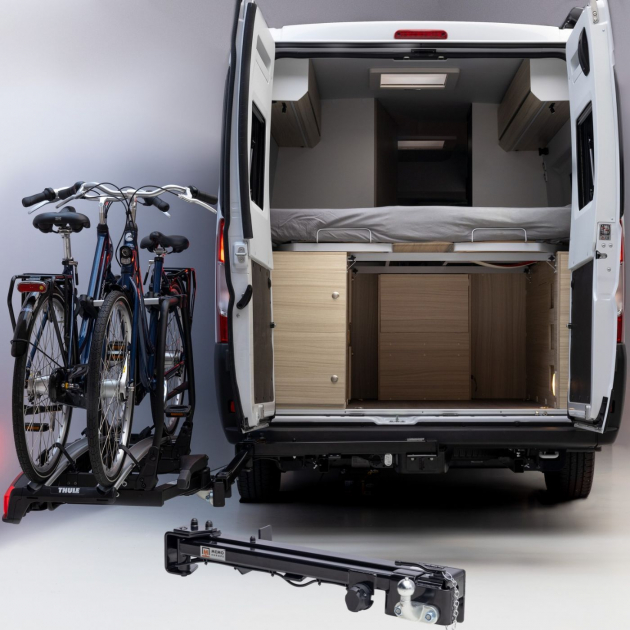

The image shows a Van Swing R (right) that extends towards the pavement when swung out.
Van-Swing has European type approval and is designed for safe use on the road. A locking pin keeps the carrier securely in the closed position. The rotating structure is made of powder-coated steel for a robust and durable solution.
Van-Swing is intended for Mercedes Sprinter from 1995, Volkswagen Crafter from 2006 and MAN TGE from 2017. Always check that your specific towbar and bike carrier are compatible before installation.
Please note that Van-Swing is only a swing module. Bike carrier not included.
Benefits
- Provides easy access to the rear doors without removing the bike carrier
- Smart hinge system for easy swinging to the side
- Fits almost all standard towbar-mounted bike carriers
- Load capacity of 60 kg including the bike carrier
- Hinge can be positioned on the left or right side
- Locking pin secures the module in the closed position
- Mounts to the existing towbar with a flange ball
- European type approval
- Robust powder-coated steel construction
Technical data
Width: 960 mm
Width from centre of motorhome: 900 mm
Net weight: 22 kg
Load capacity: 60 kg including bike carrier
Material, rotating structure: Powder-coated steel
Cable: 13-pin Jaeger connector
Vehicles: Mercedes Sprinter 1995-, Volkswagen Crafter 2006-, MAN TGE 2017-
Bike carrier: Bike carrier not included
