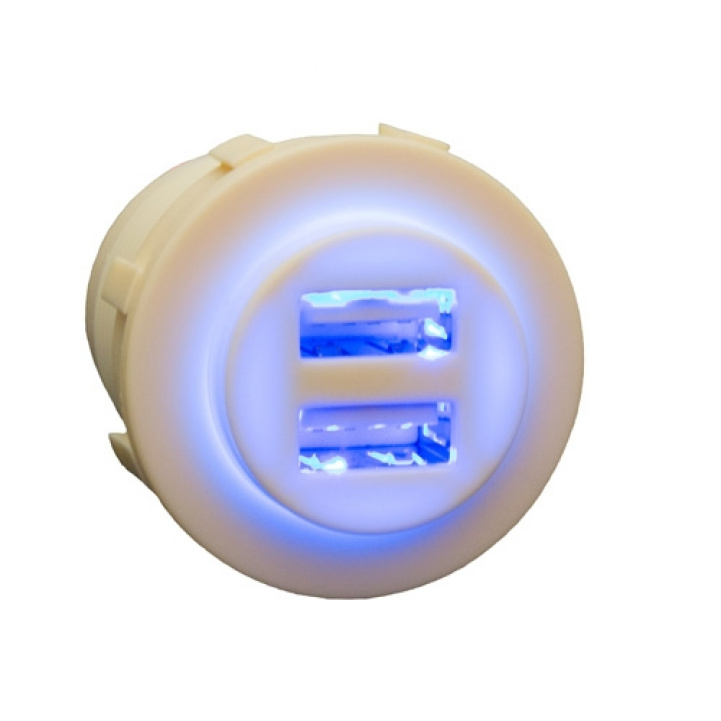

This flush-mounted USB socket with LED lighting is designed for tough environments. With an IP65 rating (with the lid closed), it withstands rain, rough weather, and dust – perfect for vehicles, boats, and outdoor installations. The USB socket delivers up to 5A total output current, whether one or both ports are used, significantly more than standard USB sockets.
Installation is easy thanks to a smart locking nut with barbs, allowing it to be tightened with a screwdriver even in tight spaces.
Technical specifications:
- Voltage: 12/24V
- Input voltage: 8–29 V
- Output voltage: 5 V DC ±2%
- Max output current: 5 A total (not split per port)
- IP rating with lid closed: IP65
- Mounting hole: Ø 30–32 mm
- Max panel thickness: 17 mm
- Connections: 6.3 mm spade terminals
- Material, lid: TPE
- Material, sleeve: PS
- Material, housing: PA6
- Material, connector: Nickel-plated brass
