The system provides both cooling and heating through a reversible heat pump and features three fan speeds plus automatic mode. With a current consumption of just 2.9 A, it is designed for efficient operation. The internal airflow is 360 m³/h and the temperature can be adjusted between 16 and 31°C.

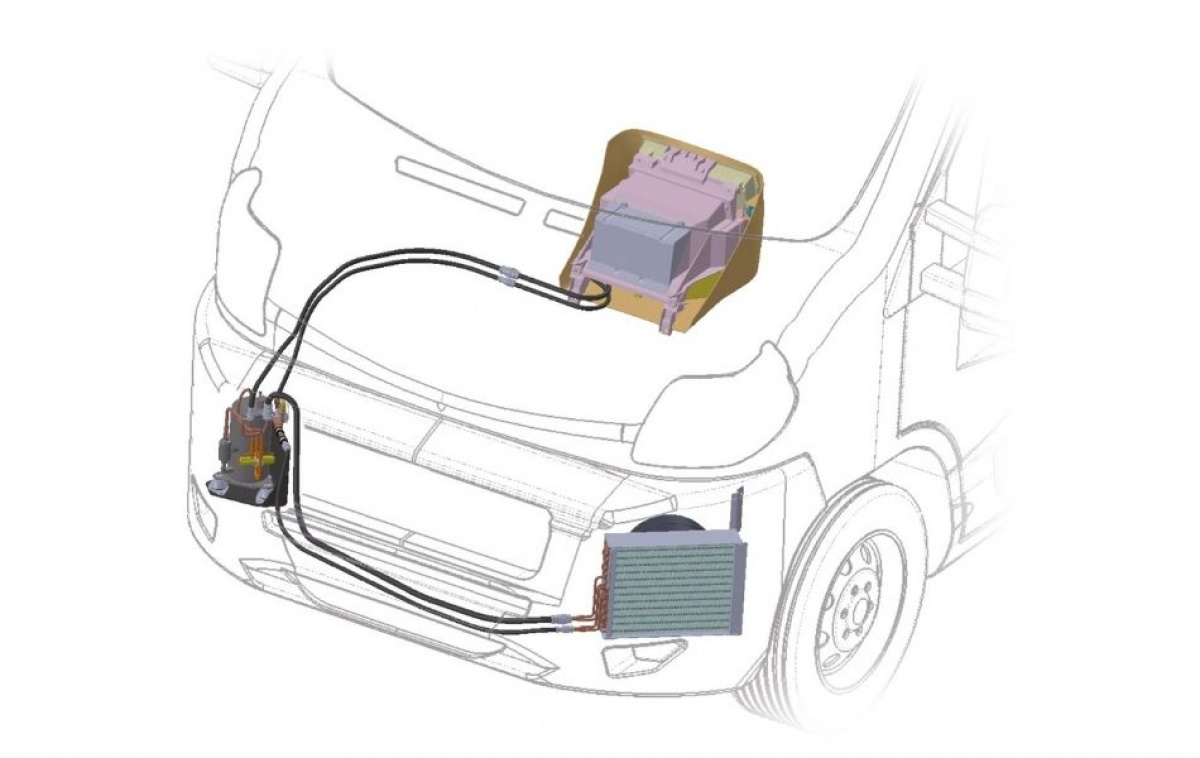

Ultra Comfort 6000 consists of an internal unit and an external unit made up of two parts mounted behind the vehicle bumper. The parts are connected using flexible hoses with quick-release fittings. The R134a refrigerant is already charged into the system and distributed throughout the components, including the watertight connection pipes. Installation must only be carried out by an authorised workshop.
Advantages
- Compact solution for vans and semi-integrated motorhomes
- Suitable for vehicles with pop-up roofs
- No unit mounted on the roof
- Discreet integrated internal unit
- Cooling and heating with heat pump
- Three fan speeds plus automatic mode
- Low current consumption of 2.9 A
- Air diffuser grilles adjustable vertically and horizontally
- Temperature display
- Remote control
- Wi-Fi function available as an option
Technical data
Power supply: 230 V, 50 Hz
Cooling capacity: 6000 Btu/h, 1.76 kW
Heating capacity: 5700 Btu/h, 1.67 kW
Current consumption: 2.9 A
Temperature setting range: 16-31°C
Fan speeds: 3 + Auto
Internal airflow: 360 m³/h
Refrigerant: R134a
Maximum refrigerant quantity: 650 g
Inverter: TI 1500 SI-ACT, Required, not included. Alternatively, a similar inverter. Contact support if needed.
Approvals: CE / R10
Weight: 28 kg
Recommended vehicle length: 5-6.5 m
Fits: Fiat Ducato, Peugeot Boxer and Jumper from 2021-2025
For older X290 chassis from 2014-2021, KAMI 6000 installation kit is required
For Fiat vehicles from 2026 onwards, a separate installation kit is required
Installation: Must be carried out by an authorised workshop
