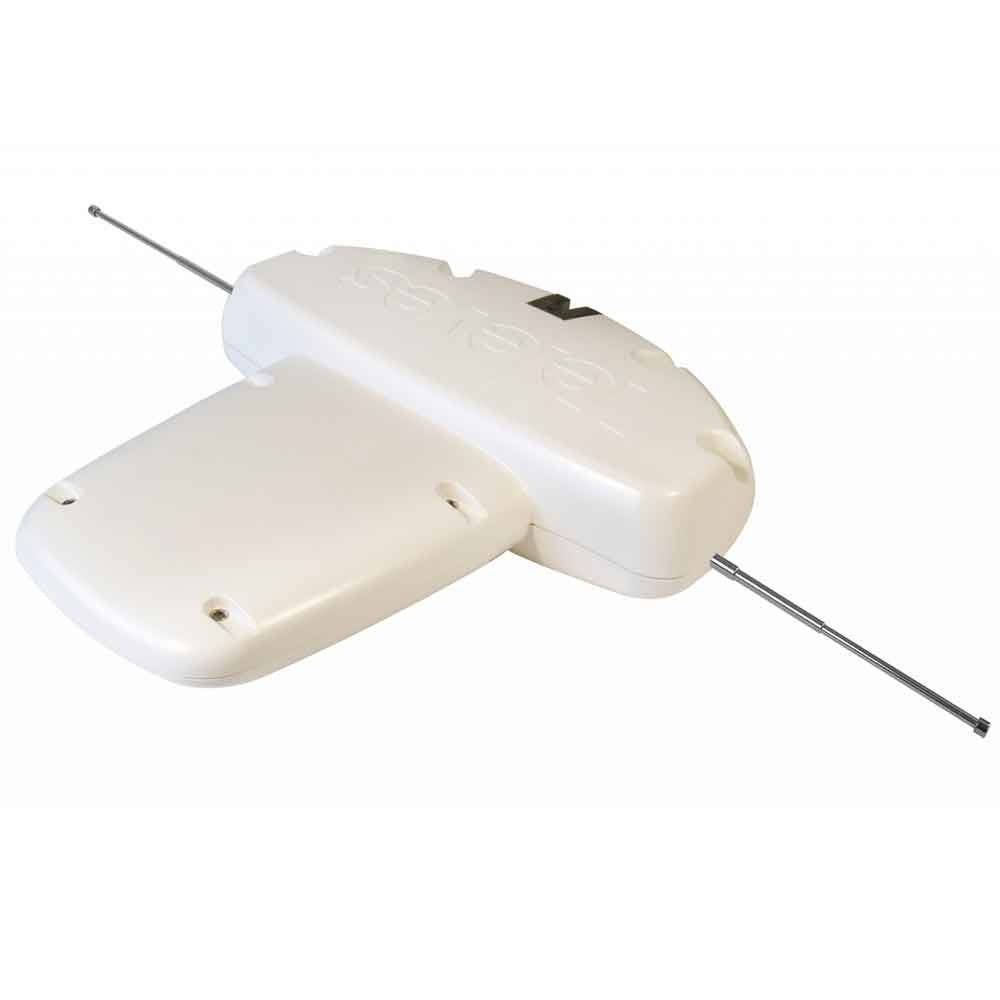

TV antenna Dinova Boss T-Force

Few compact antennas are as complete as the Televes DiNova. The antenna can be used for
12V/mains voltage in caravans, motorhomes, boats or in the home for mains voltage.
In addition to excellent reception characteristics, DiNova is unique in many more ways:

• BOSS technology that regulates gain and equalises muxes
• Built-in LTE protection against 4G/LTE signals
• Vibration tested (to hurricane strength), robust mechanics for many years of operation on mobile vehicles
• Smart design with combined low-noise amplifier and indoor unit
• 40% lower weight compared to its predecessor.

The receiving antenna is built around a 10-element Yagi antenna with a reflector for
Directional effect forward.

The antenna elements are integrated into the circuit board and have been optimised through
computer simulations. DiNova receives both FM, DAB, VHF and UHF with DVB-T signal.
Antenna gain is at 7 dB.
A dipole amplifier has been integrated with an additional 12 dB gain. The dipole amplifier
is characterised by low power consumption, high operational reliability and very low noise figure.
The amplifier can be powered by the vehicle's 12V system and the included input filter.
