The stabiliser legs are manufactured with main components in aluminium, providing low weight without compromising strength and durability. The dynamic load capacity is 500 kg per stabiliser leg and the static load capacity reaches an impressive 1000 kg per stabiliser leg.

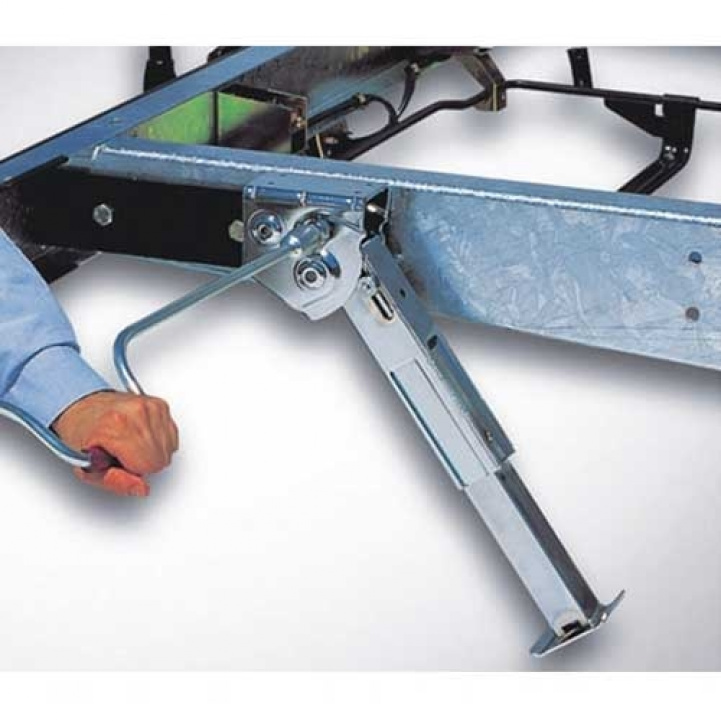

Manual operation is simple and convenient. On the first turn of the stabiliser crank, the leg automatically drops into a vertical position and begins extending. When the stabiliser leg is wound back up, it automatically locks into the folded position with a clear click.
For added safety, the stabiliser legs feature an integrated free swing mechanism that automatically folds the legs forwards or backwards if the vehicle is accidentally driven away with the legs extended.
Installation is simple on AL-KO AMC chassis and frame extensions from August 1995 onwards thanks to pre drilled mounting holes.
Technical data
- Stabiliser legs for motorhomes
- Fits AL-KO AMC chassis and frame extensions
- ClickFix locking system
- Free swing mechanism when driving off
- Manual winding operation
- Automatic locking in folded position
- Main components in aluminium
- Mounted using pre drilled holes
- Dynamic load capacity 500 kg per stabiliser leg
- Static load capacity 1000 kg per stabiliser leg
- Supplied in pairs
- 19 mm stabiliser crank sold separately
Included

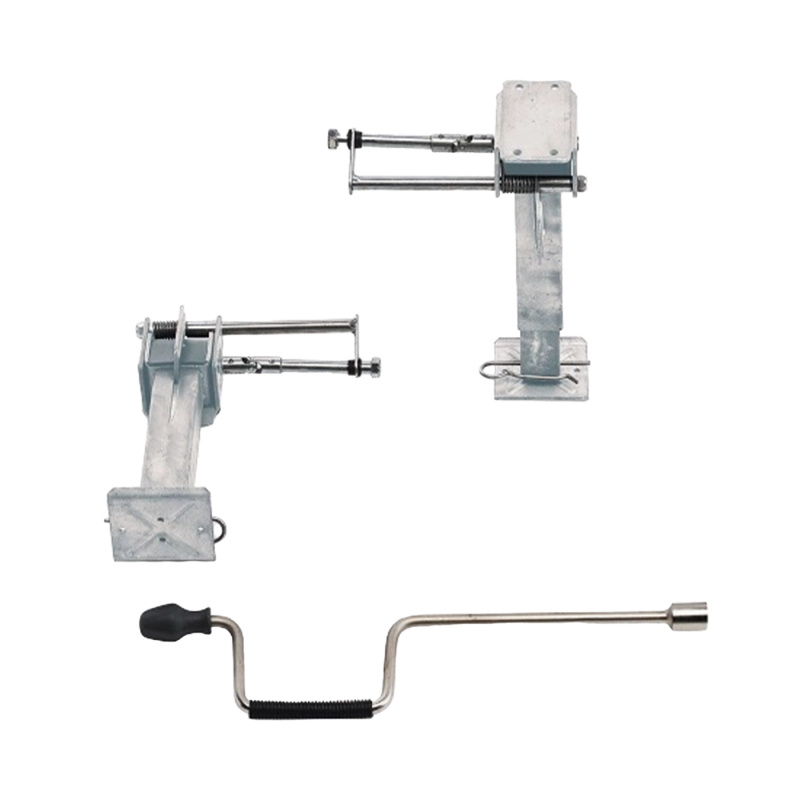

- 2 stabiliser legs
- Mounting hardware
- Installation and user instructions

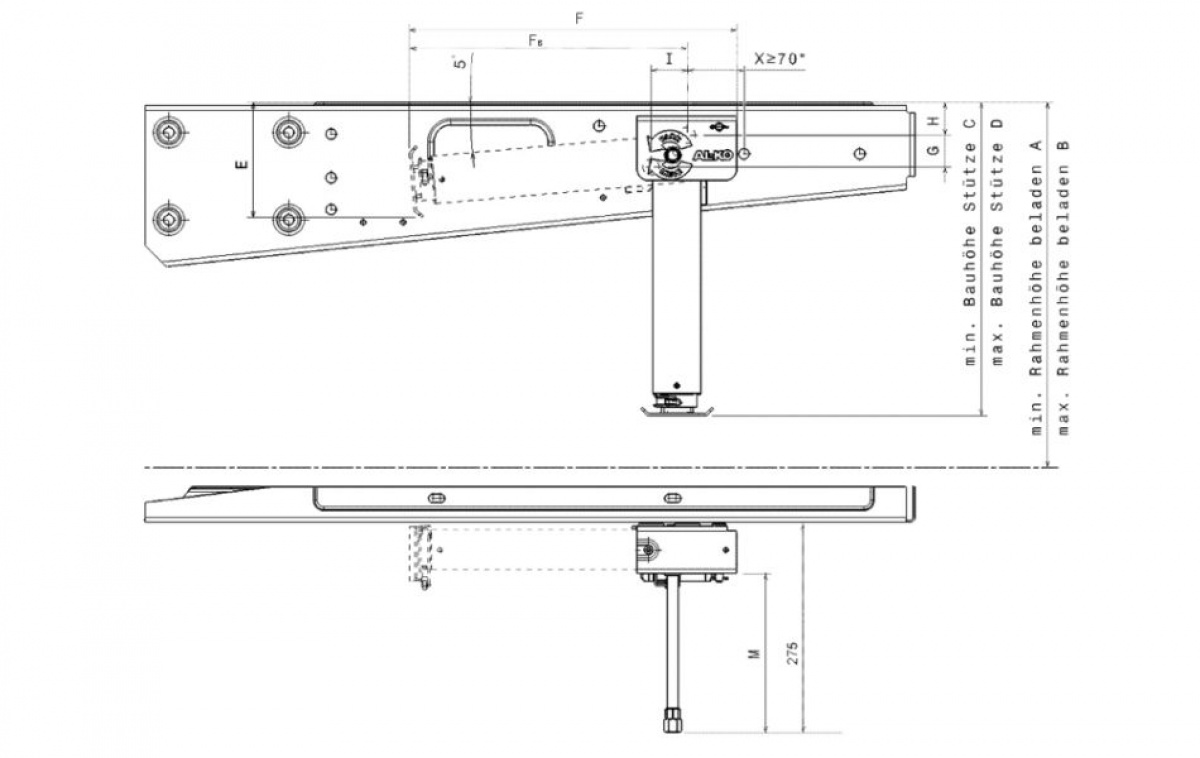

Dimensions see image 2.
Installation dimension E 142 mm
Installation dimension F 382 mm
Installation dimension FB 320 mm
Installation dimension G 40 mm
Installation dimension H 41.5 mm
Installation dimension I 45 mm
Drive shaft length M 200 mm
Minimum required frame height A 320 mm
Maximum required frame height B 440 mm
Minimum stabiliser leg installation height C 297 mm
Load height 464 mm
